# RECON-XT-A FreeFly Astro

## FreeFly Astro Quick Start Guide:

{% tabs %}
{% tab title="Recon-XT-A Aerial" %}

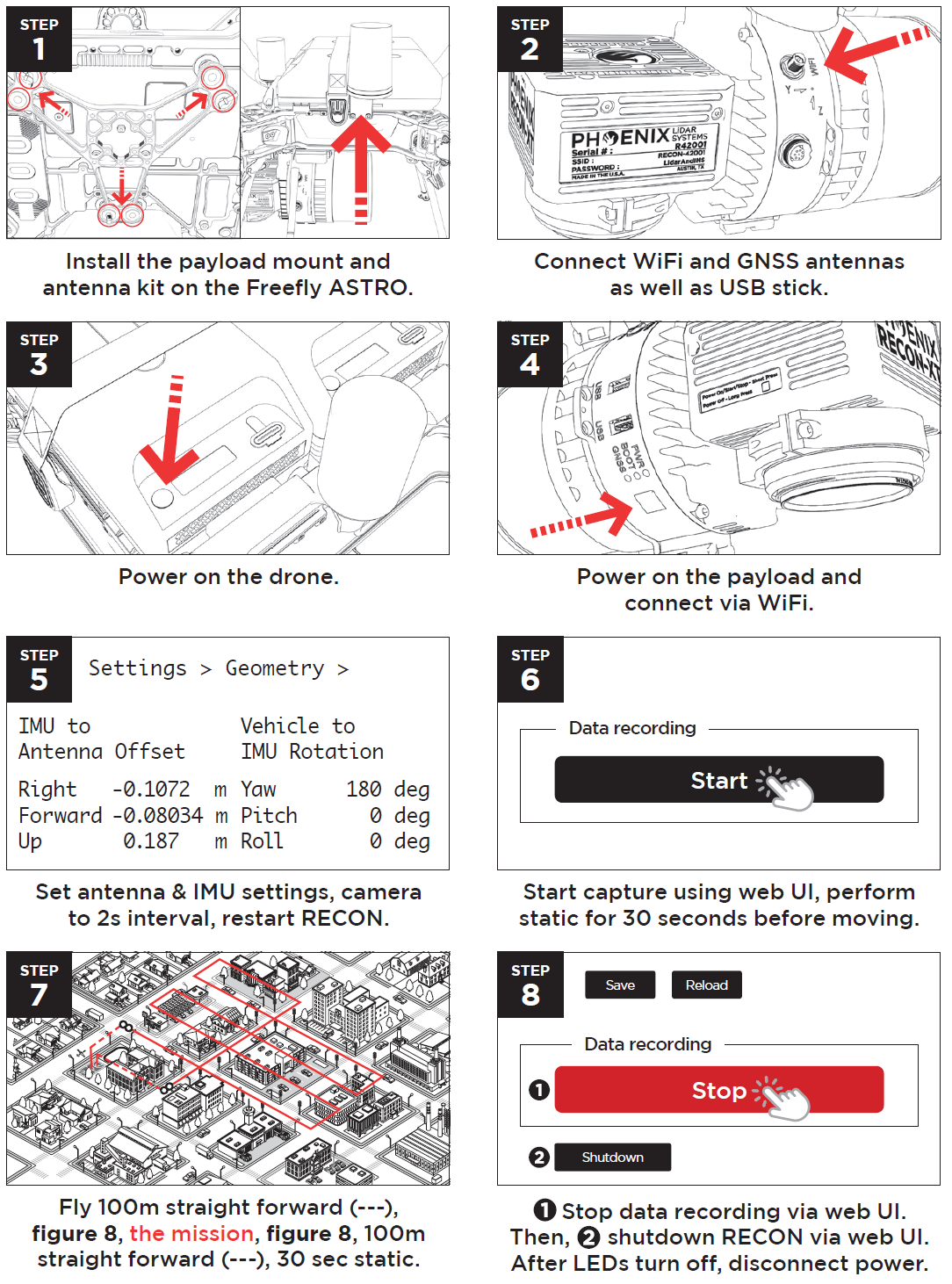

<figure><img src="https://2222094320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdEevfLZRIk38LUPwDa4V%2Fuploads%2FTt5oNngMTzIkQ7xkEDwY%2Fxtastro.png?alt=media&amp;token=71f6eaff-6516-4854-96d7-f708f9d77090" alt=""><figcaption><p>Recon-XT-A Quick Start Guide for Freefly Astro UAV.</p></figcaption></figure>
{% endtab %}

{% tab title="Recon-XT-A Slam" %}

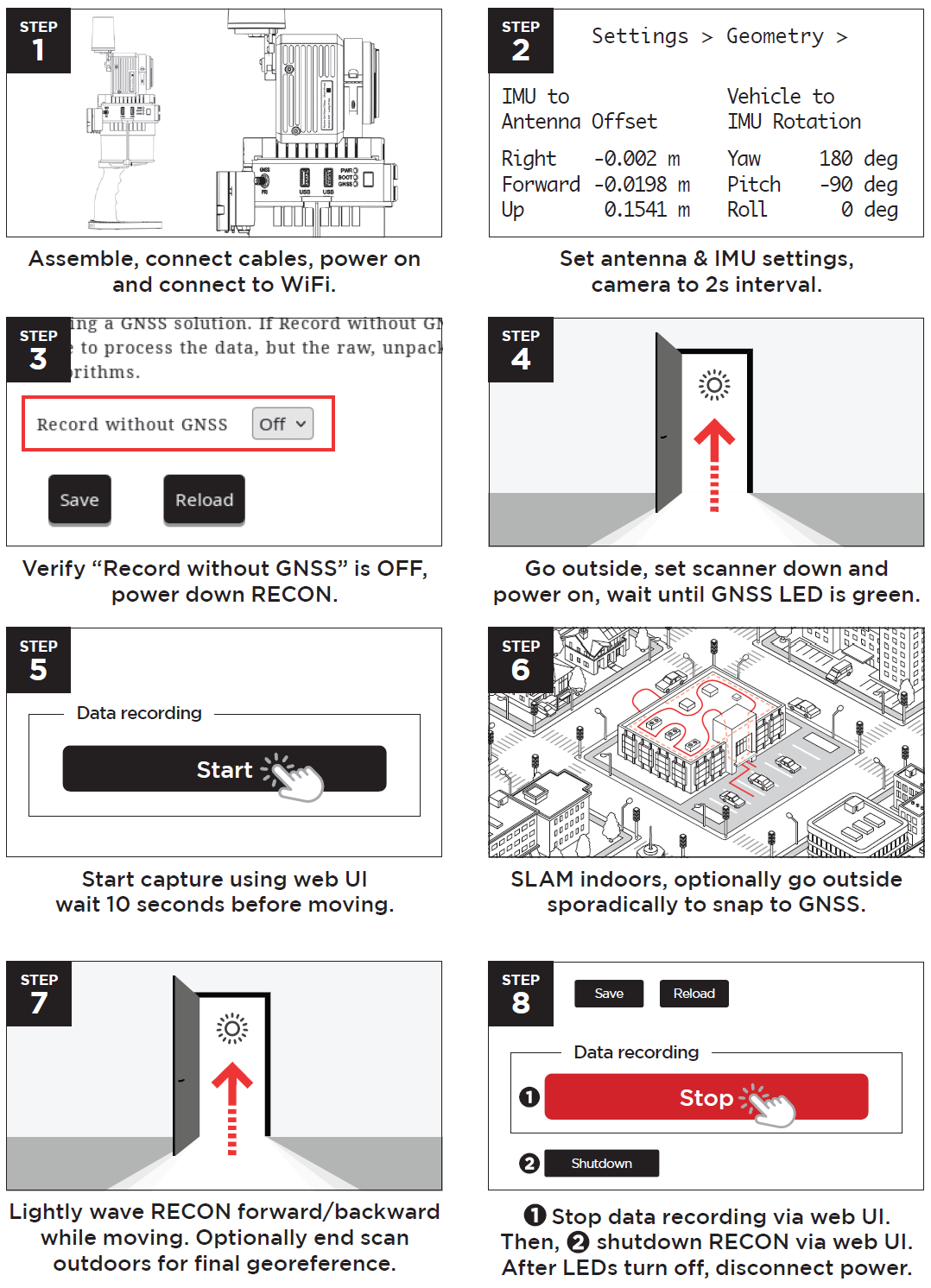

<figure><img src="https://2222094320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdEevfLZRIk38LUPwDa4V%2Fuploads%2FRdH0FPEpbNaFh5wuyYtK%2Fxtaslam.png?alt=media&amp;token=8e92e274-5efc-4207-b458-aa1f4b600e98" alt=""><figcaption><p>Recon-XT-A Quick Start Guide for SLAM Handle.</p></figcaption></figure>
{% endtab %}

{% tab title="Recon-XT-A Mobile" %}

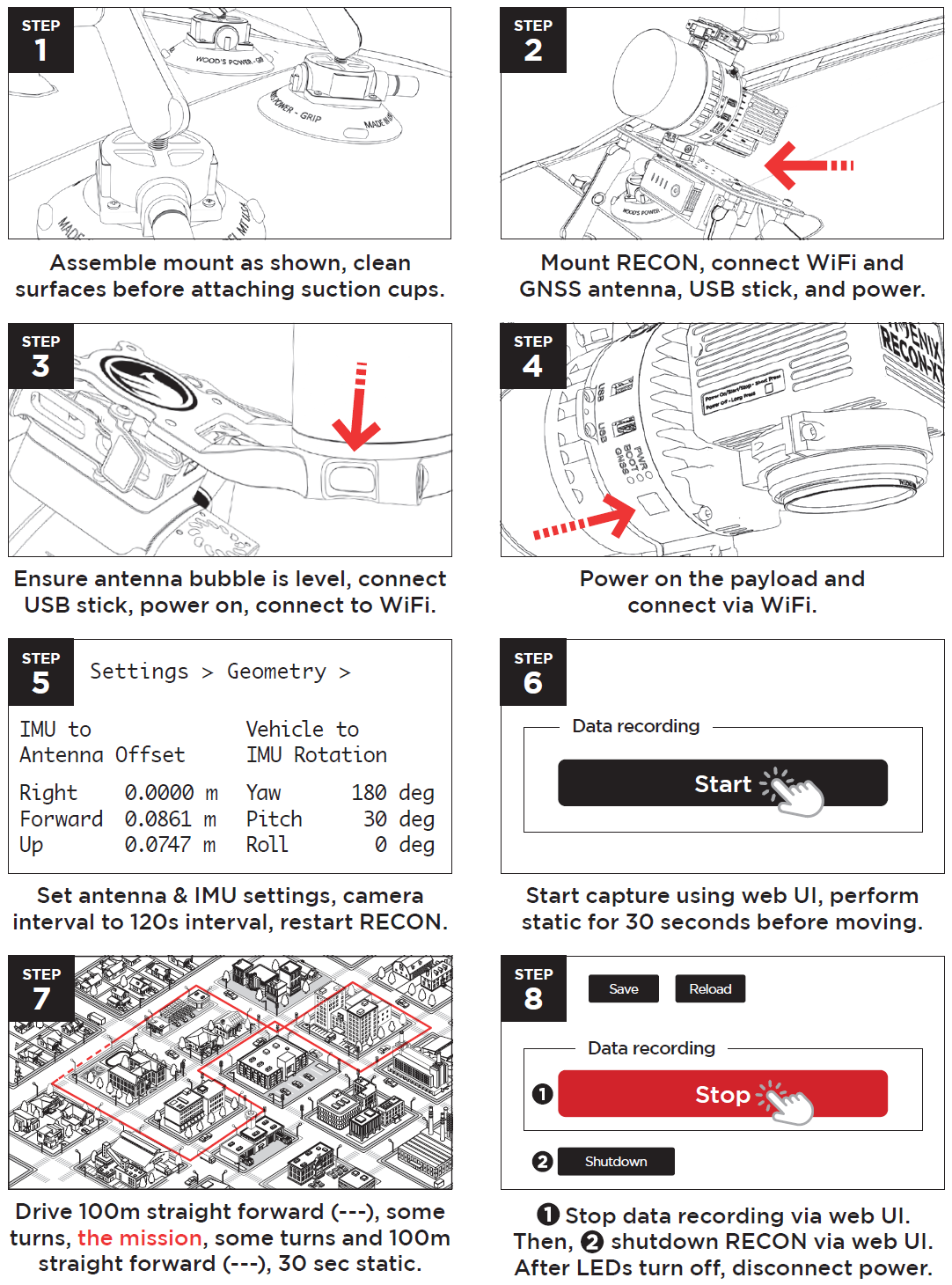

<figure><img src="https://2222094320-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FdEevfLZRIk38LUPwDa4V%2Fuploads%2FCzcA8mBylL7omkMKBcht%2Fxtamobile.png?alt=media&amp;token=30302650-00d1-40d6-9bc5-88a8ac049672" alt=""><figcaption><p>Recon-XT-A Quick Start Guide for Mobile Vehicle using Roof Rack or Suction Mount at 30 degrees.</p></figcaption></figure>
{% endtab %}
{% endtabs %}

## PDF Version

{% file src="/files/7g7JDk3wrq8nljejufZj" %}

## FreeFly ASTRO RECON XT-A Technical Drawing

{% file src="/files/qQ9nA63ThnrH17Yy0CoZ" %}
FreeFly ASTRO RECON XT-A Technical Drawing
