# RECON-XT M300/M350

## M300 RECON-XT Quick Start Guide:

{% tabs %}
{% tab title="Register Recon-XT" %}

<figure><img src="/files/xQrcKmWl5bJCLsO1Jrdf" alt=""><figcaption><p>Getting started with Recon Systems</p></figcaption></figure>
{% endtab %}

{% tab title="Backpack" %}

<figure><img src="/files/8DcE9bO2jr4yJh1763Gw" alt=""><figcaption><p>Recon-XT Quick Start Guide for Backpack accessory at 30,45, and 90 degrees.</p></figcaption></figure>
{% endtab %}

{% tab title="Aerial" %}

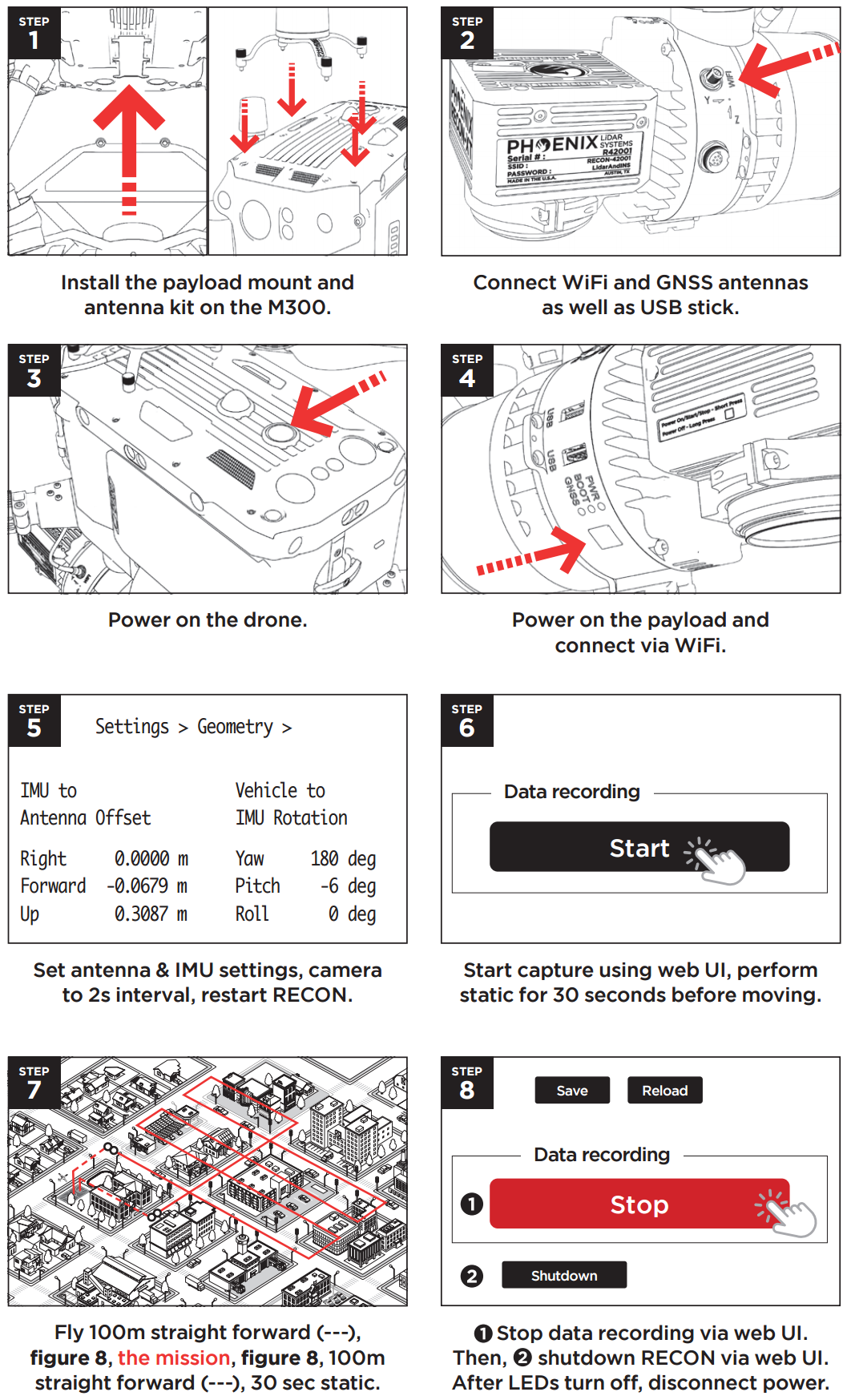

<figure><img src="/files/OynjRhw81m7Zc5jjV2NJ" alt=""><figcaption><p>Recon-XT Quick Start Guide for M300/M350 UAV.</p></figcaption></figure>
{% endtab %}

{% tab title="SLAM" %}

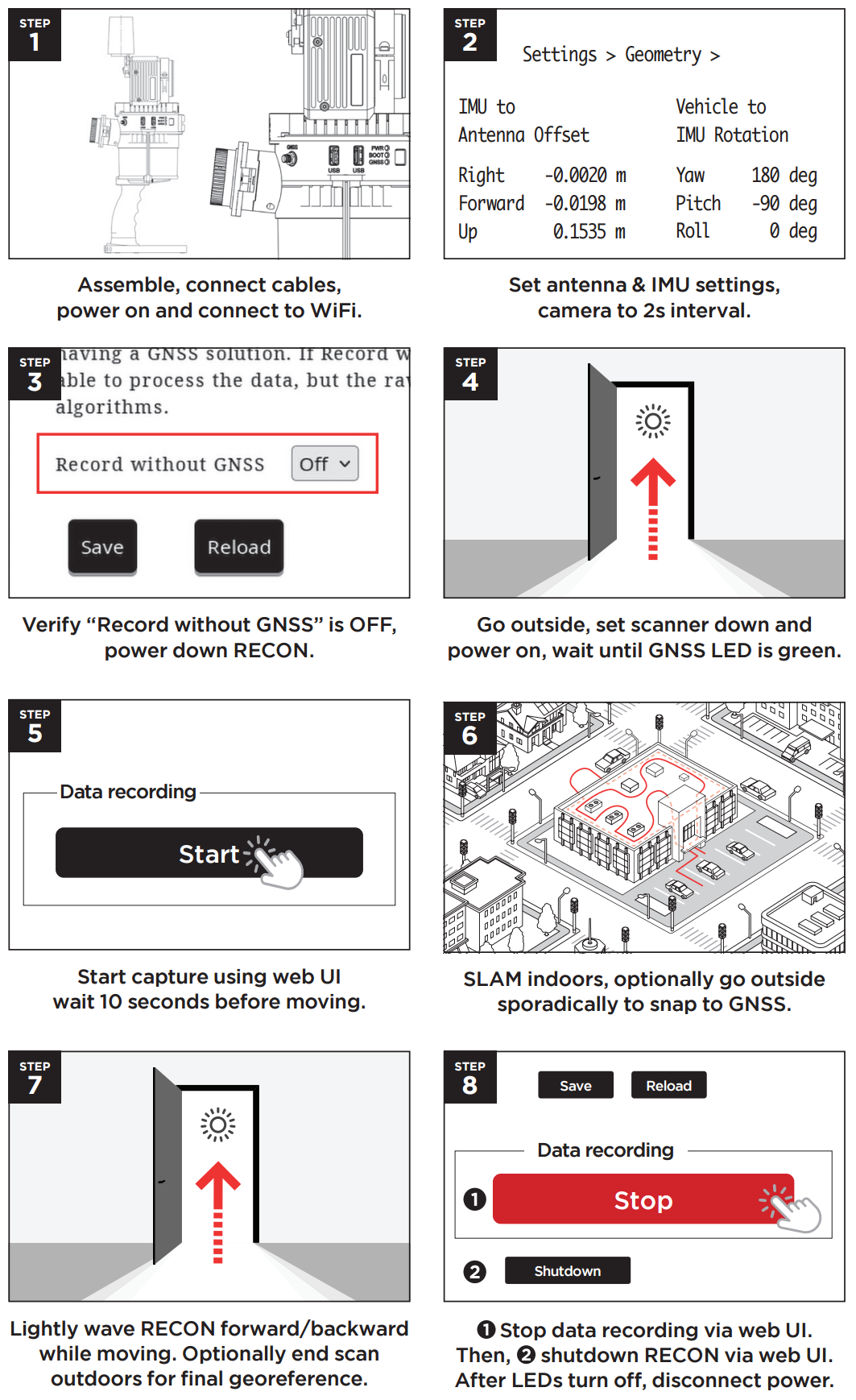

<figure><img src="/files/Id5JY3pjhQb93GIilqdo" alt=""><figcaption><p>Recon-XT Quick Start Guide for SLAM Handle.</p></figcaption></figure>
{% endtab %}

{% tab title="Mobile" %}

<figure><img src="/files/yJmEsq8hWNururOzrCq8" alt=""><figcaption><p>Recon-XT Quick Start Guide for Mobile Vehicle using Roof Rack or Suction Mount at 30 degrees.</p></figcaption></figure>
{% endtab %}
{% endtabs %}

## PDF Format

{% file src="/files/vrnLSB59fJA3W8cy4Zgq" %}
