# TerraSolid and Spatix Install

## Download Spatix and TerraSolid

Click [here](https://terrasolid.com/product/terra-sx/) to download Spatix

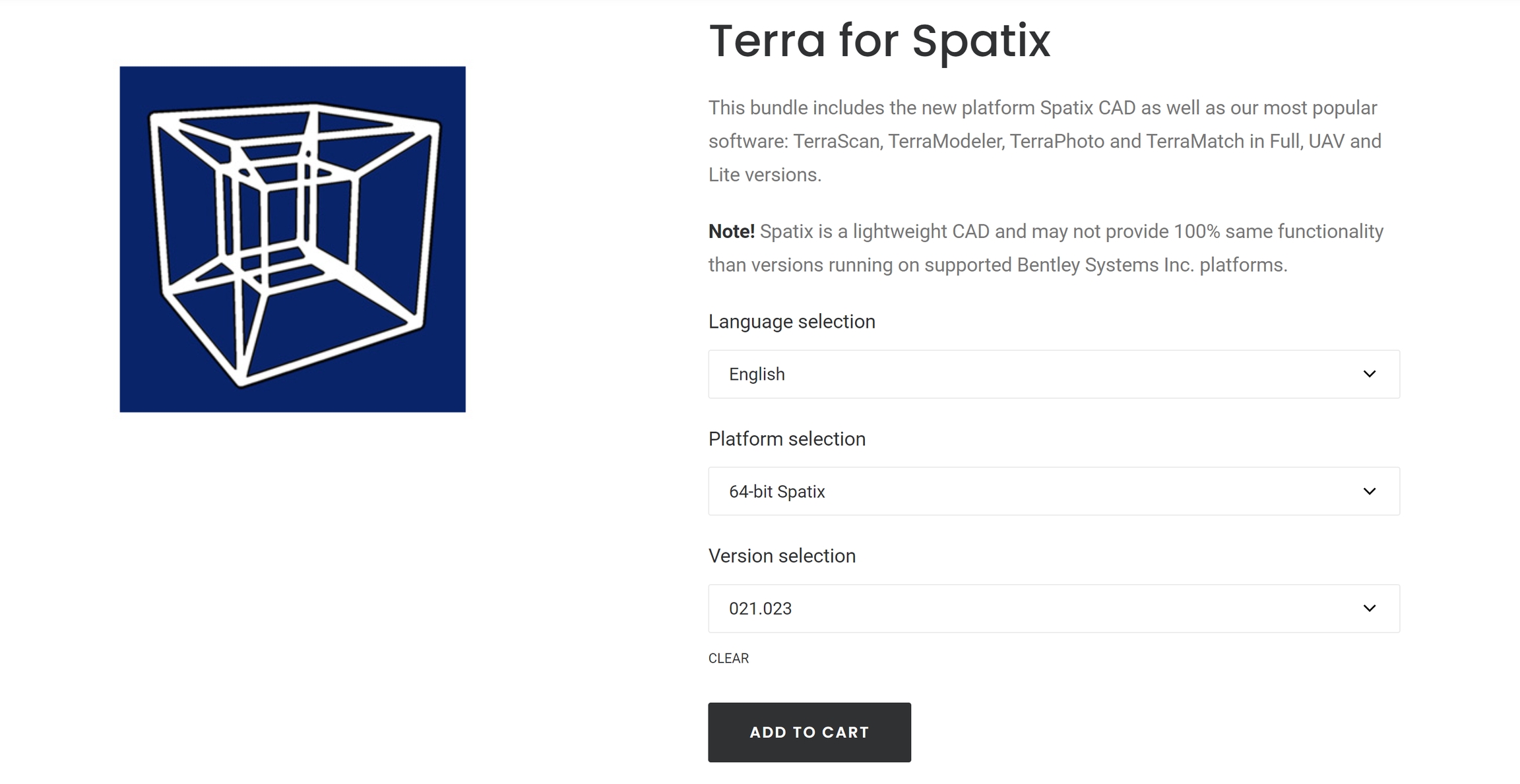

Step 1: Select the latest version of Spatix and click "Add to Cart"

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/Eam6tQLKwWNoPMiSM4N0/image.png)

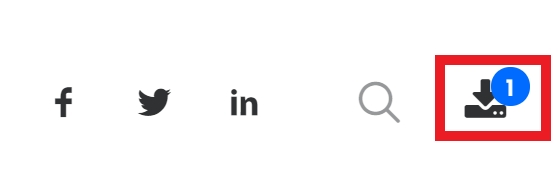

Step 2: Navigate to the upper right of your screen and click this button, then click "Proceed to Download"

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/XH6hQfBu8TUaZamUY9s9/image.png)

Step 3: Fill out the Contact Information and click "Download"

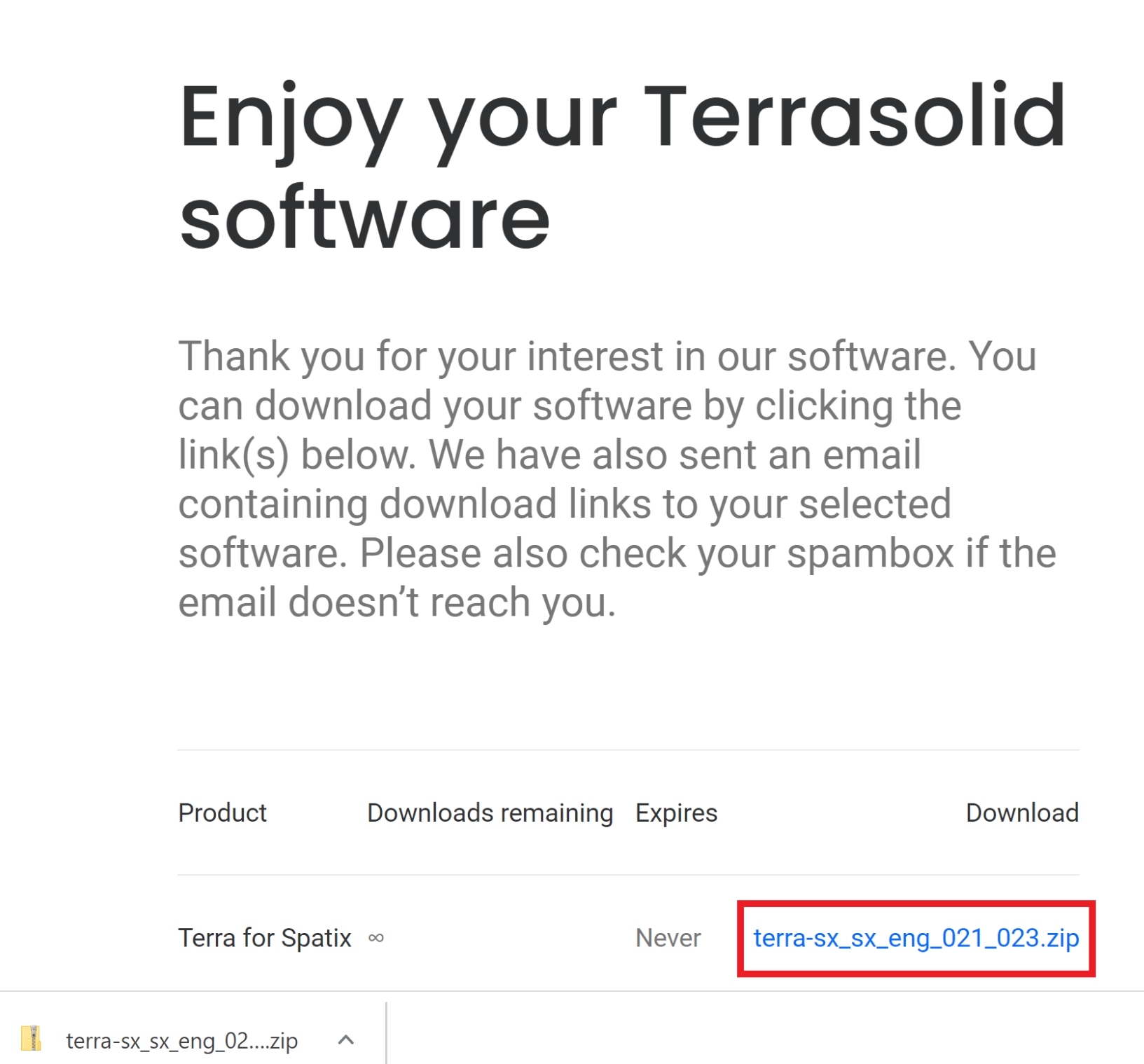

Step 4: Click on the file name ending in "ZIP" under "Download" to download file.

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/DlMHB91tcm24rmEK7pf9/image.png)

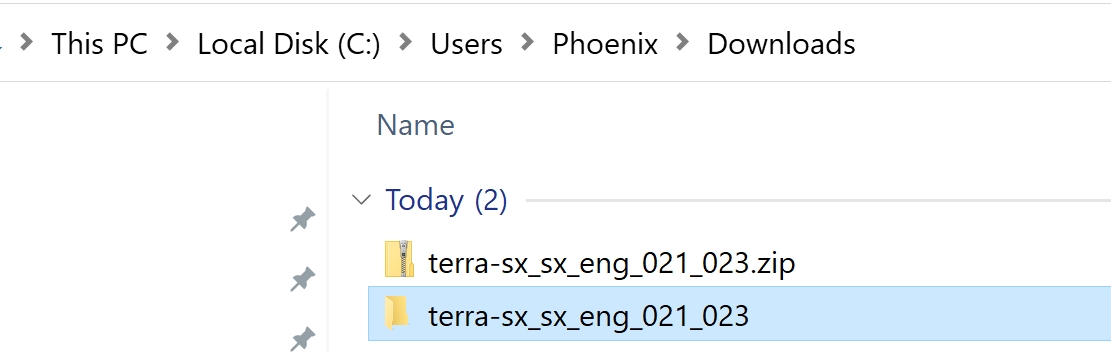

Step 5: Unzip the folder

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/vgoIcmWJmoIH7JrTL7oQ/image.png)

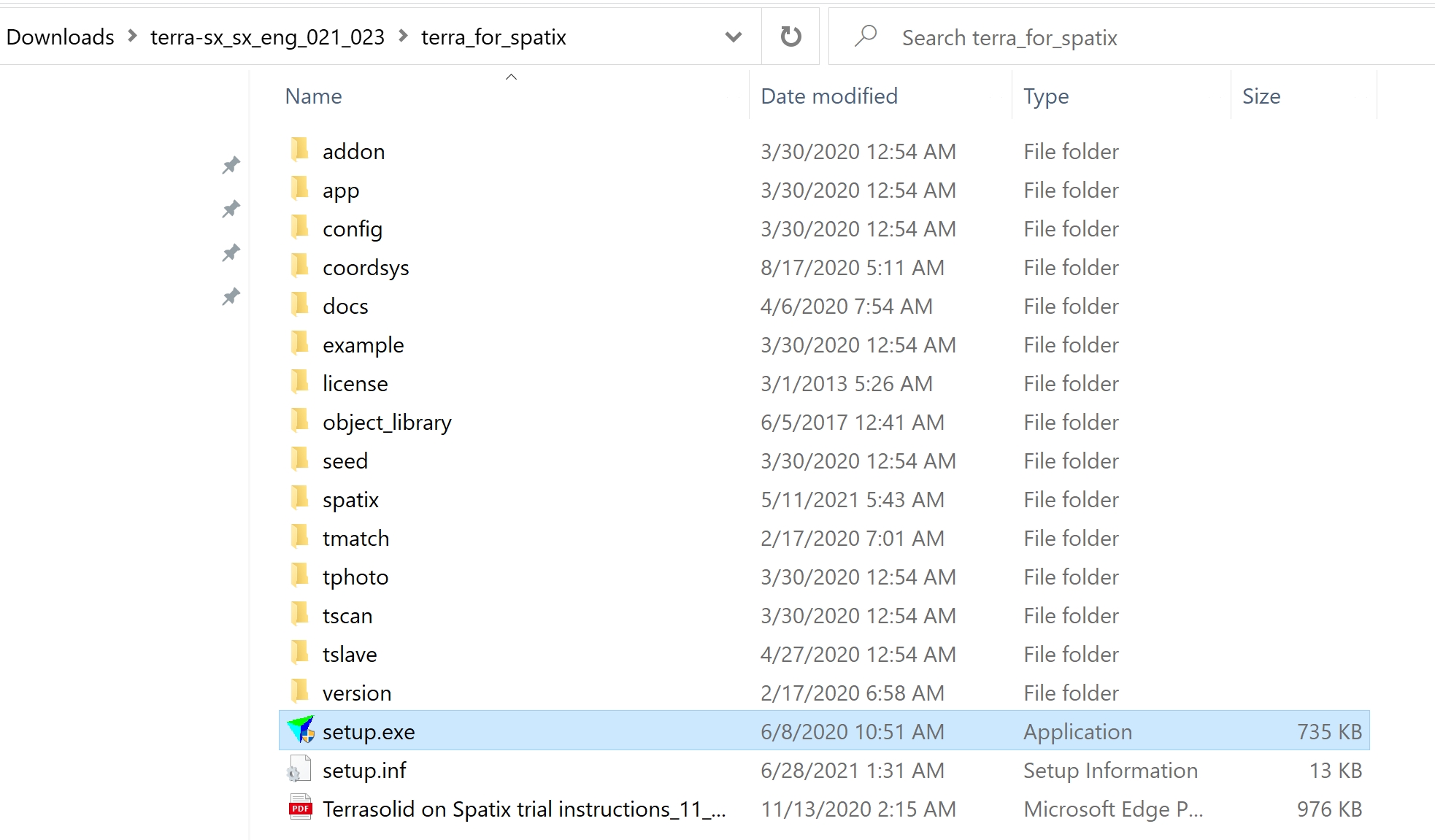

Step 6: Run "setup.exe"

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/t8VO57j4JWVQfkvtP1hk/image.png)

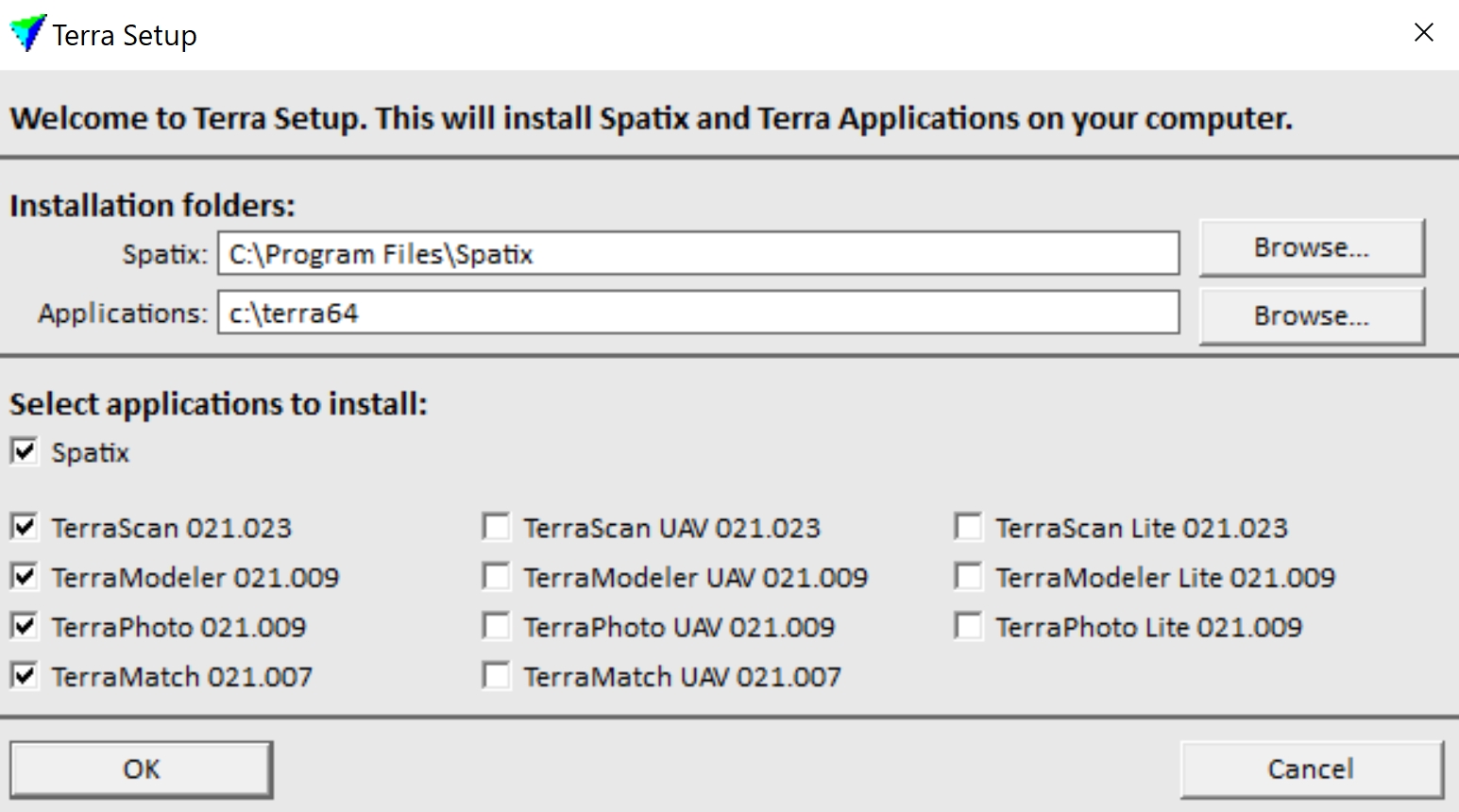

Step 7: Specify Installation folders and select applications to install, then click "OK"

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/gJFCKhjpDbH06ASuXJUM/image.png)

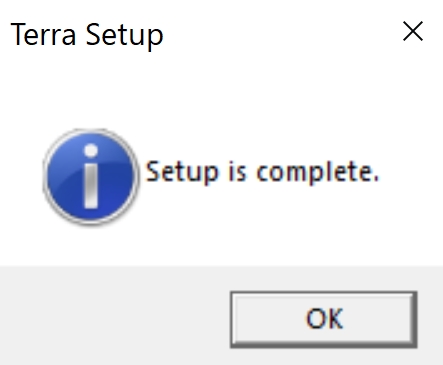

Step 8: Click OK, once setup is complete

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/aNvLjO8CfxltVaHry912/image.png)

## Spatix User Manual

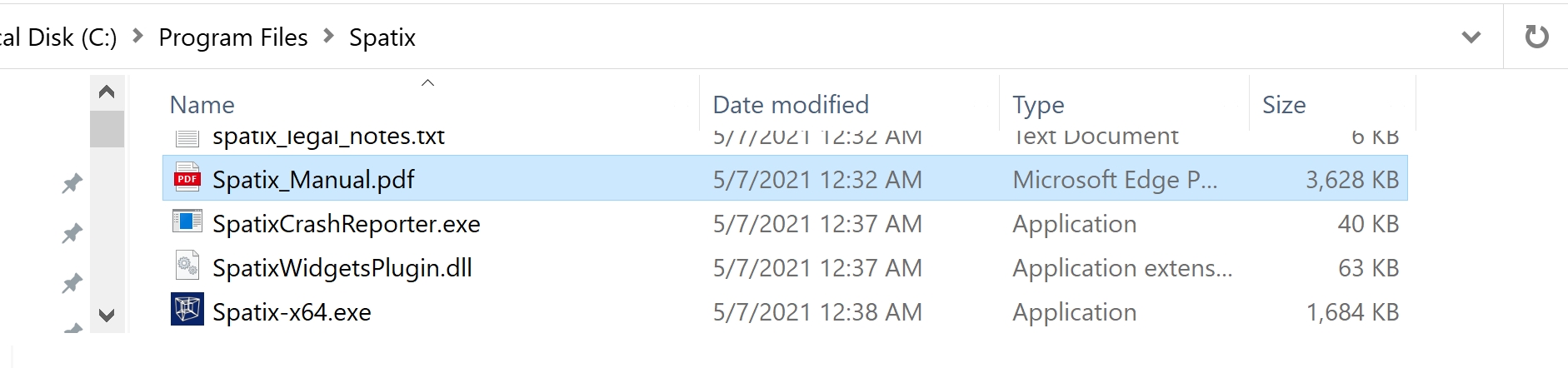

The Spatix User Manual can be found by navigating to "C:\Program Files\Spatix\Spatix\_Manual.pdf" or by clicking "Help" then " Manual..." within Spatix.

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/dkVCh9GfnQCn5sJ2Btro/image.png)

## Licensing TerraSolid

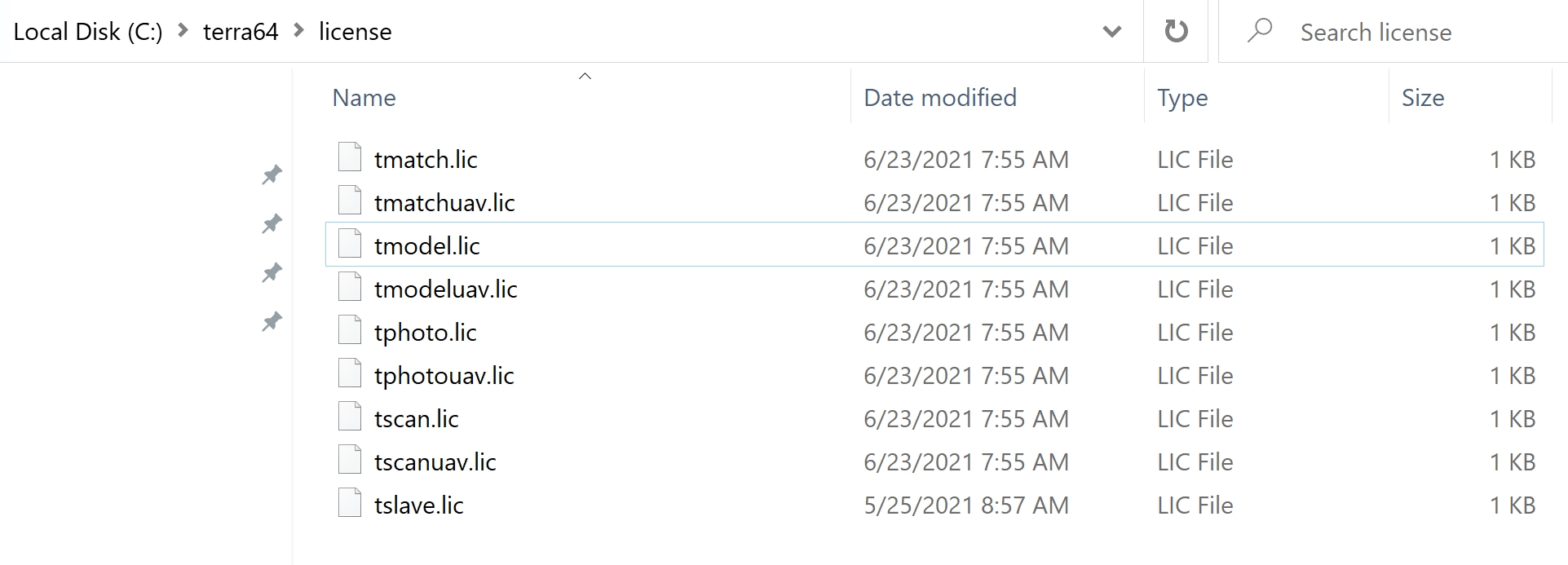

Step 1: Copy/Paste TerraSolid LIC license files into "License" folder

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/jYkhwi5eBdenKatVM6b7/image.png)

## Creating a Spatix Project

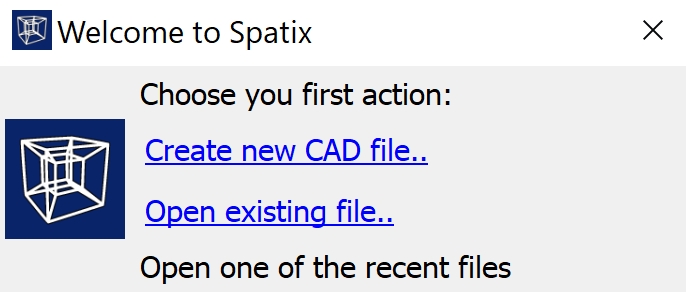

Step 1: Launch Spatix.exe and Click on "Create new CAD file.."

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/zBPdAy5pI9bcGfypkoqP/image.png)

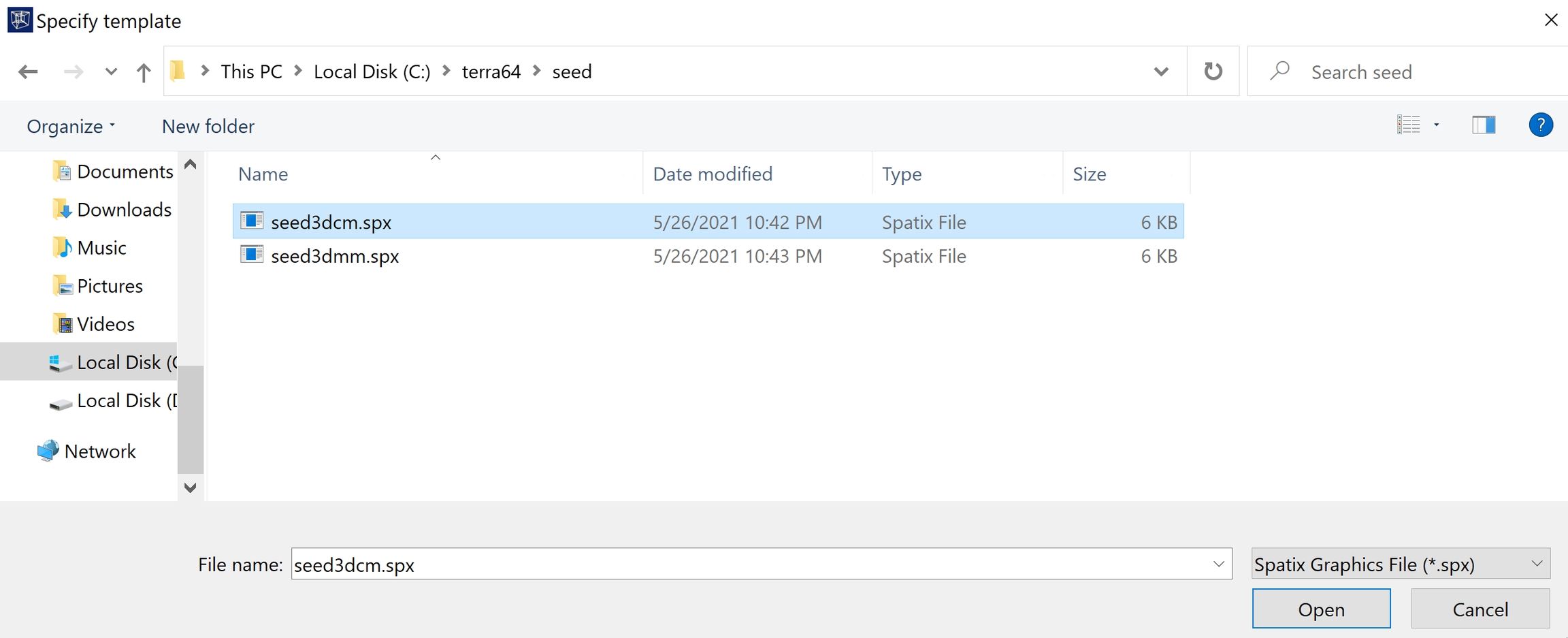

Step 2: Specify Template and click "Open"

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/t97V9ANAoJu7nNZIKxMD/image.png)

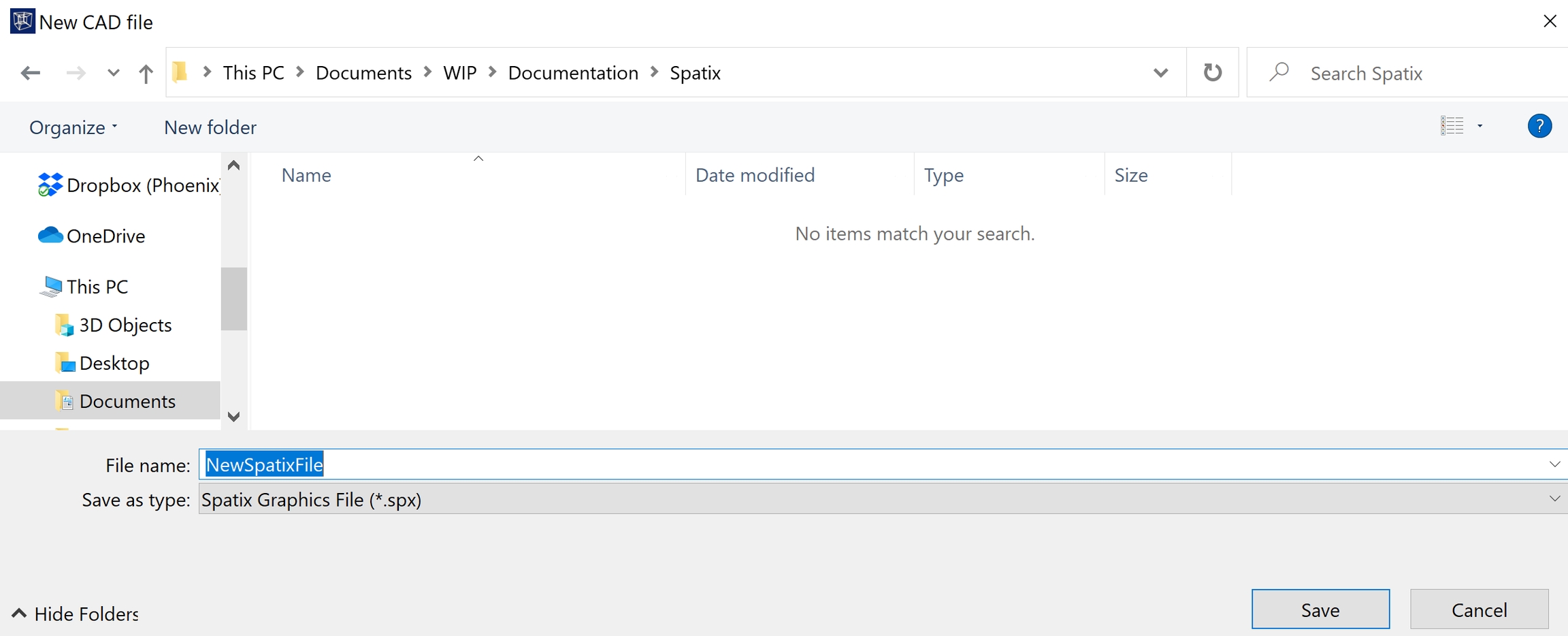

Step 3: Navigate to a folder to save Project file and specify file name

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/eCb5NFOvP5vz09xLcdBA/image.png)

## Activating Terrasolid Modules in Spatix

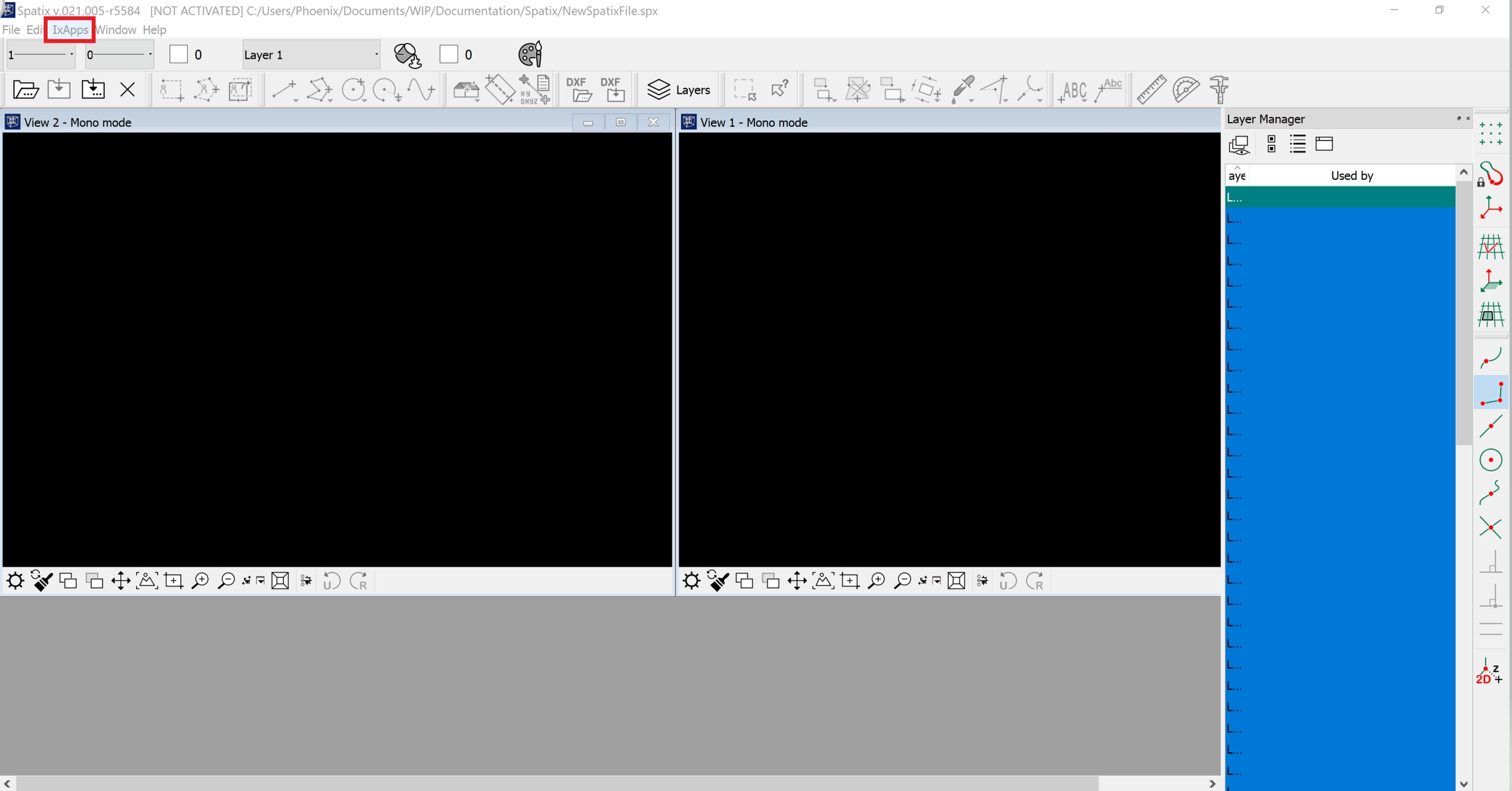

Step 1: Click on "IxApps" and then "Execute"

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/2IwQF1eGDNPIAAl8PTuj/image.png)

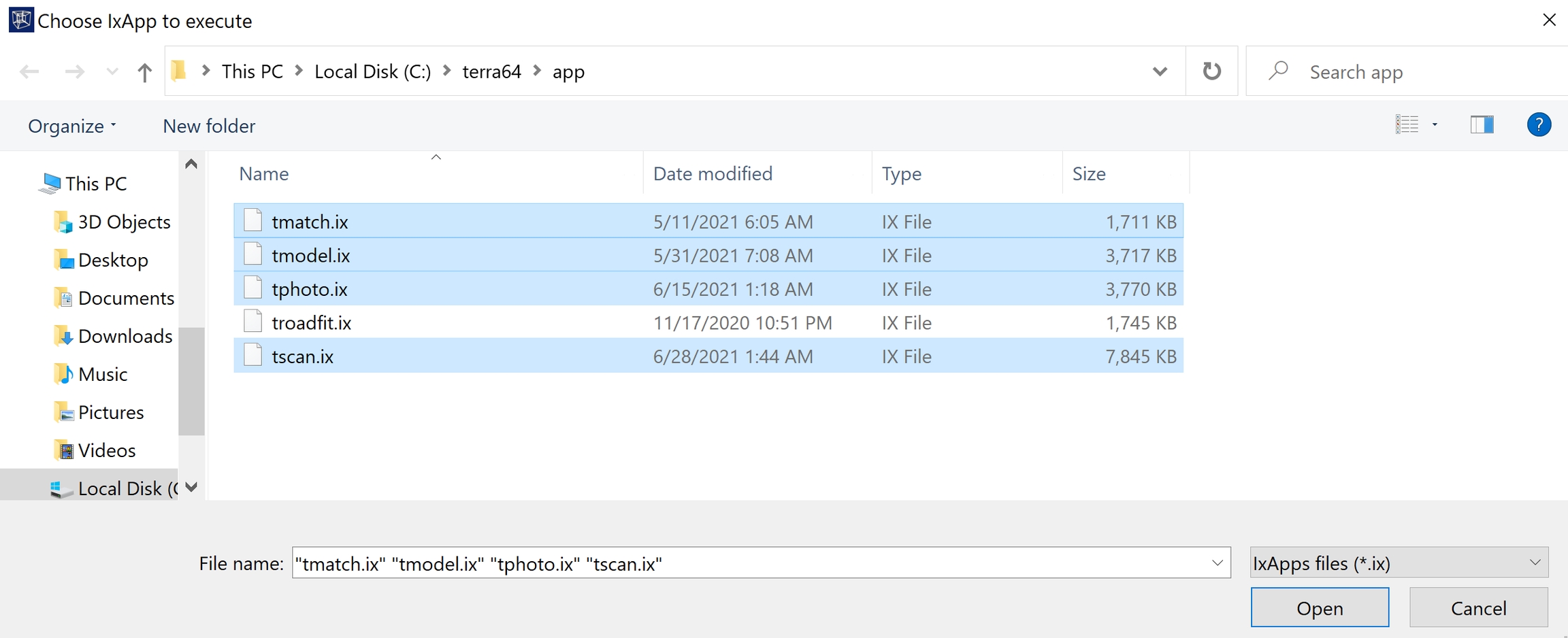

Step 2: Select Tmatch, Tmodel, Tphoto, and Tscan, and click "Open"

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/auurVJMVyWHiNWysuG6M/image.png)

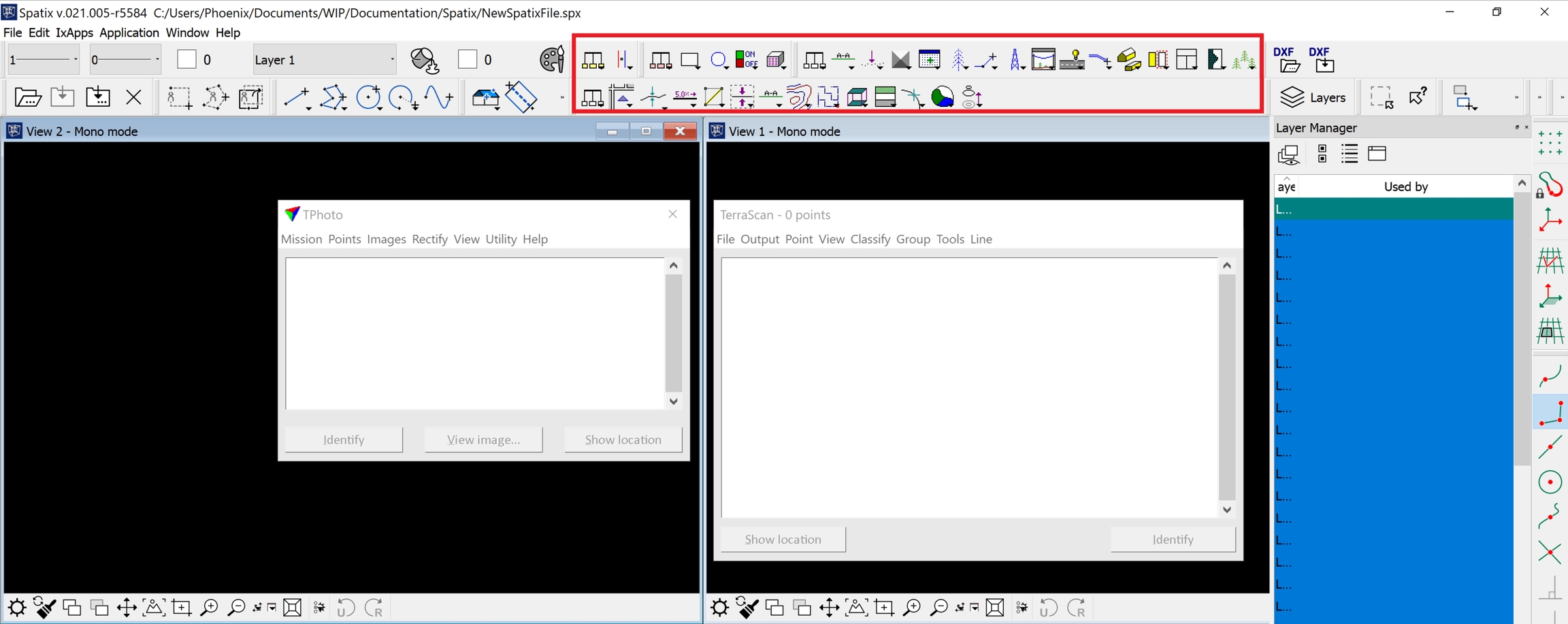

Step 3: TerraSolid Modules are activated

![](https://content.gitbook.com/content/dEevfLZRIk38LUPwDa4V/blobs/HLuqNwbTlhASc2Bd6u1P/image.png)
