Cube-A project set up

Set up a Cube-A project with the desired coordinate reference system

Cube-A project set up

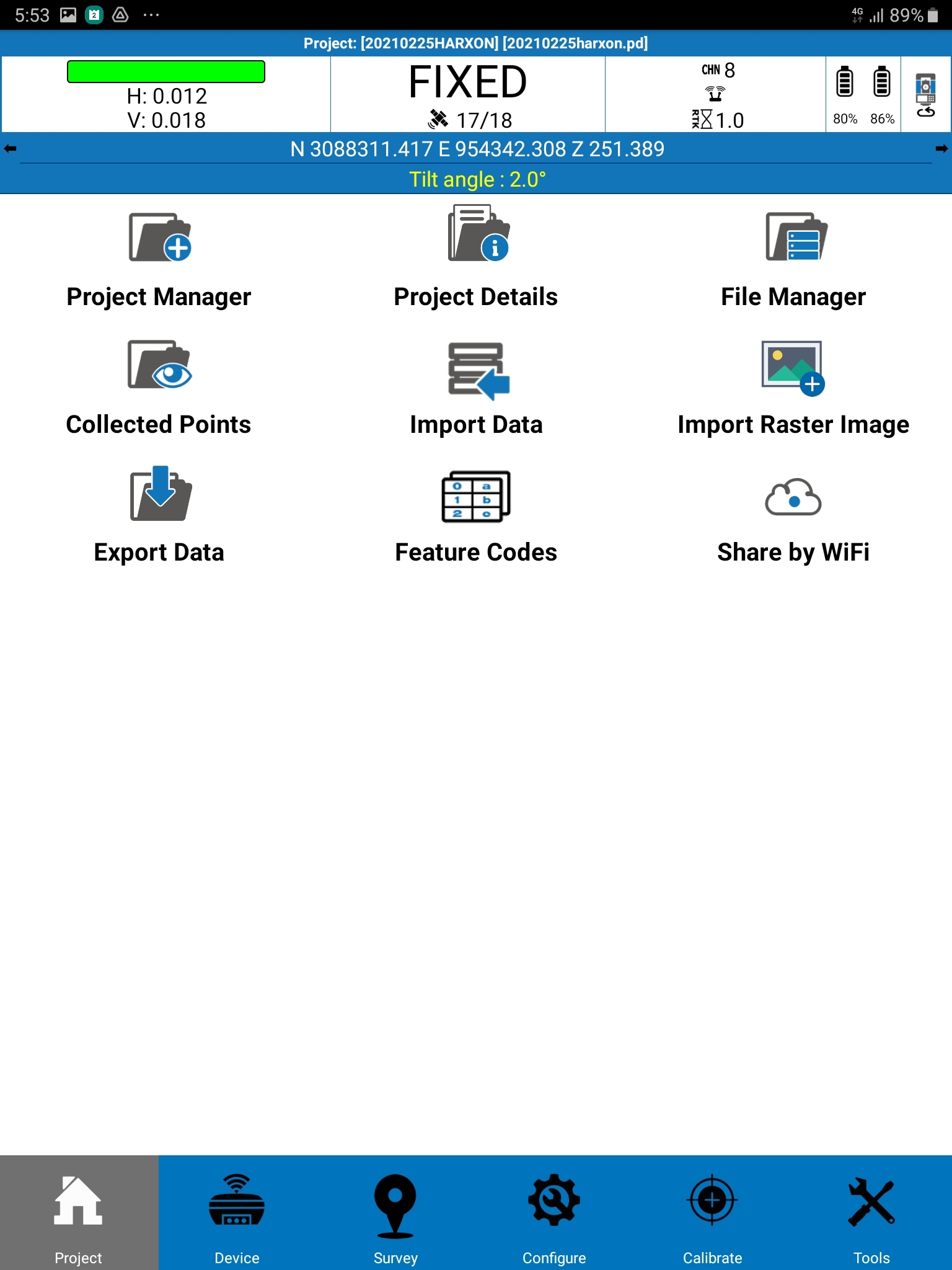

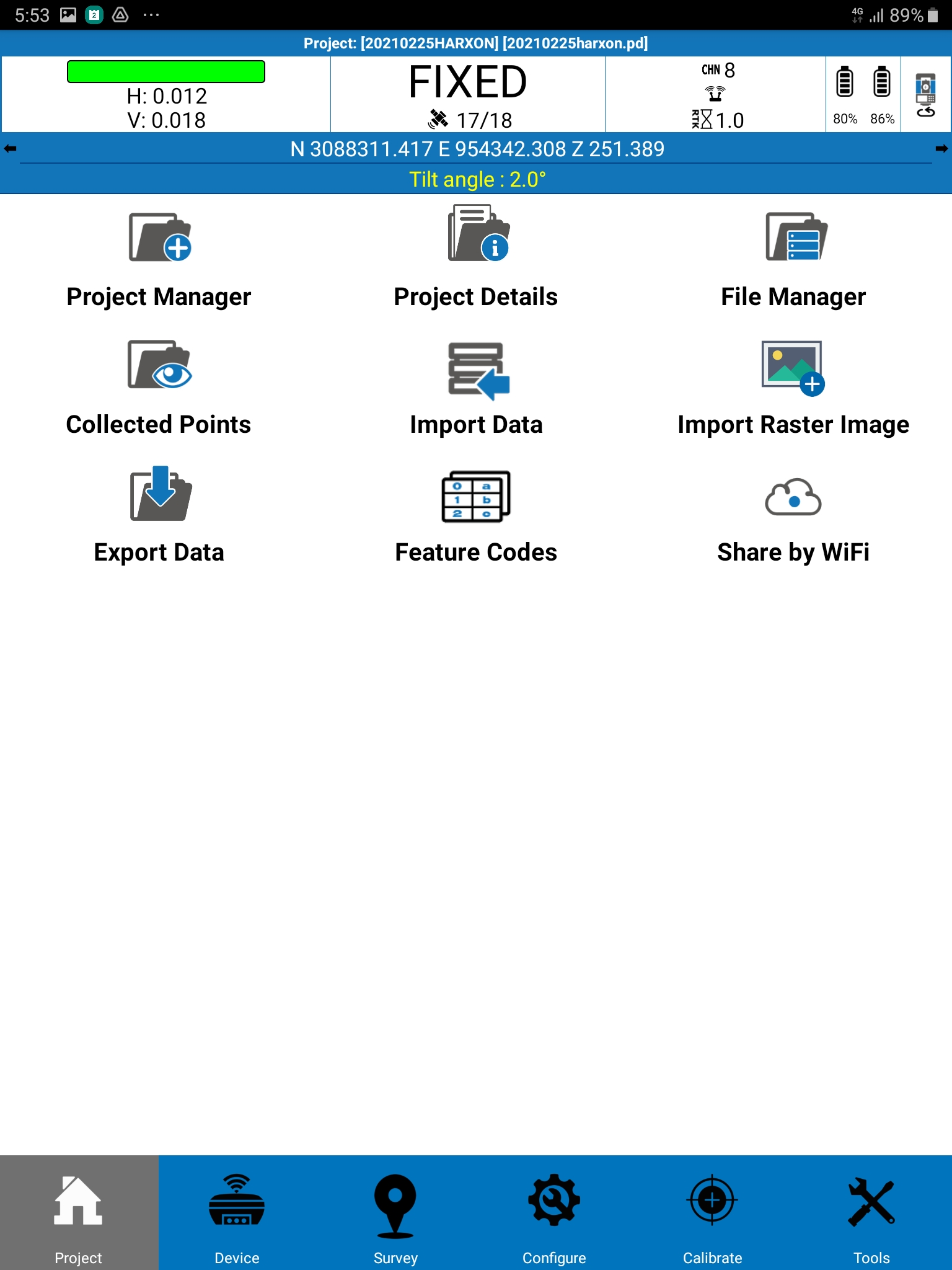

To start, navigate to the home menu and select project manager.

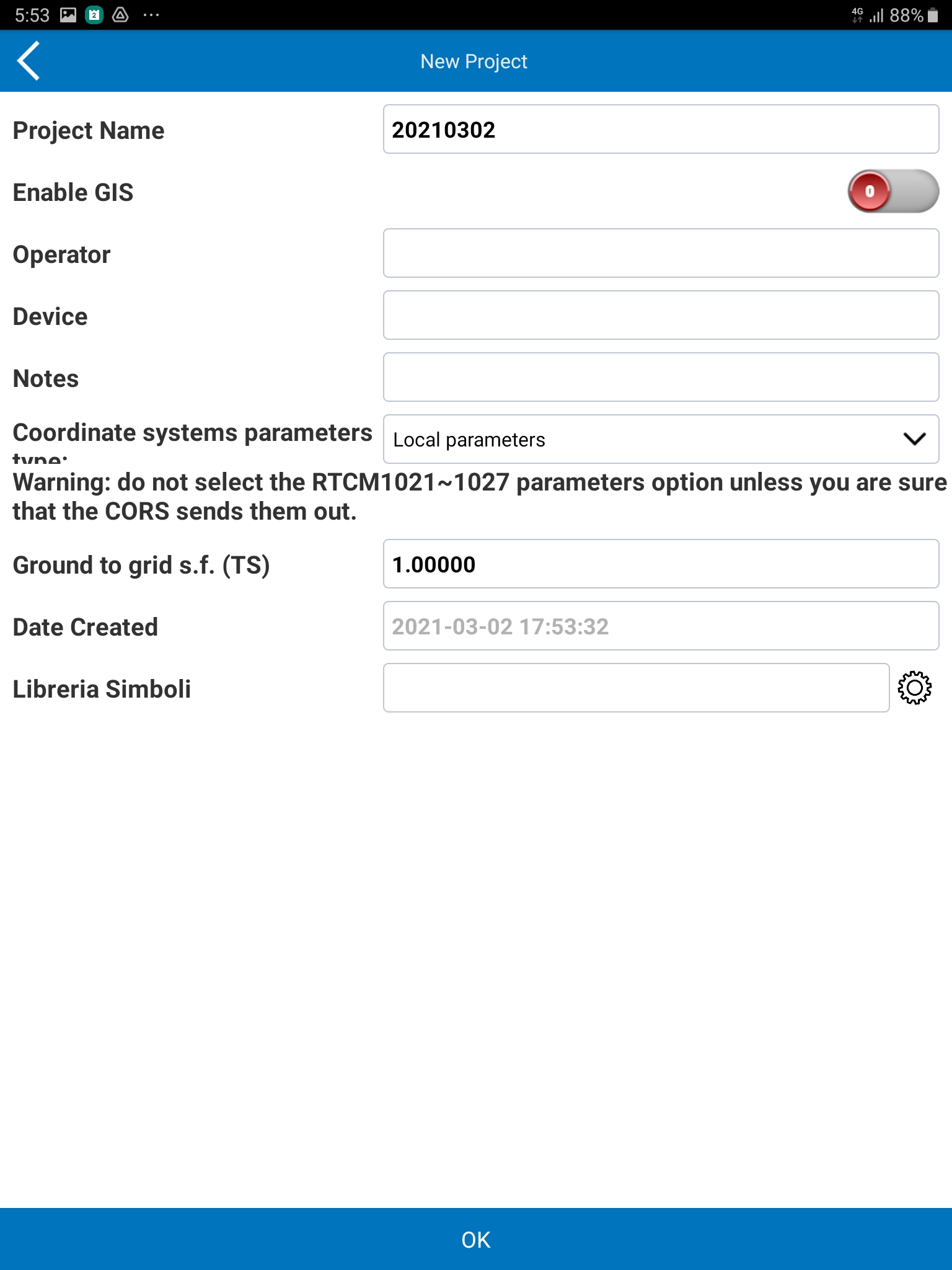

From the project manager, select New Project, input project specific information, then select OK.

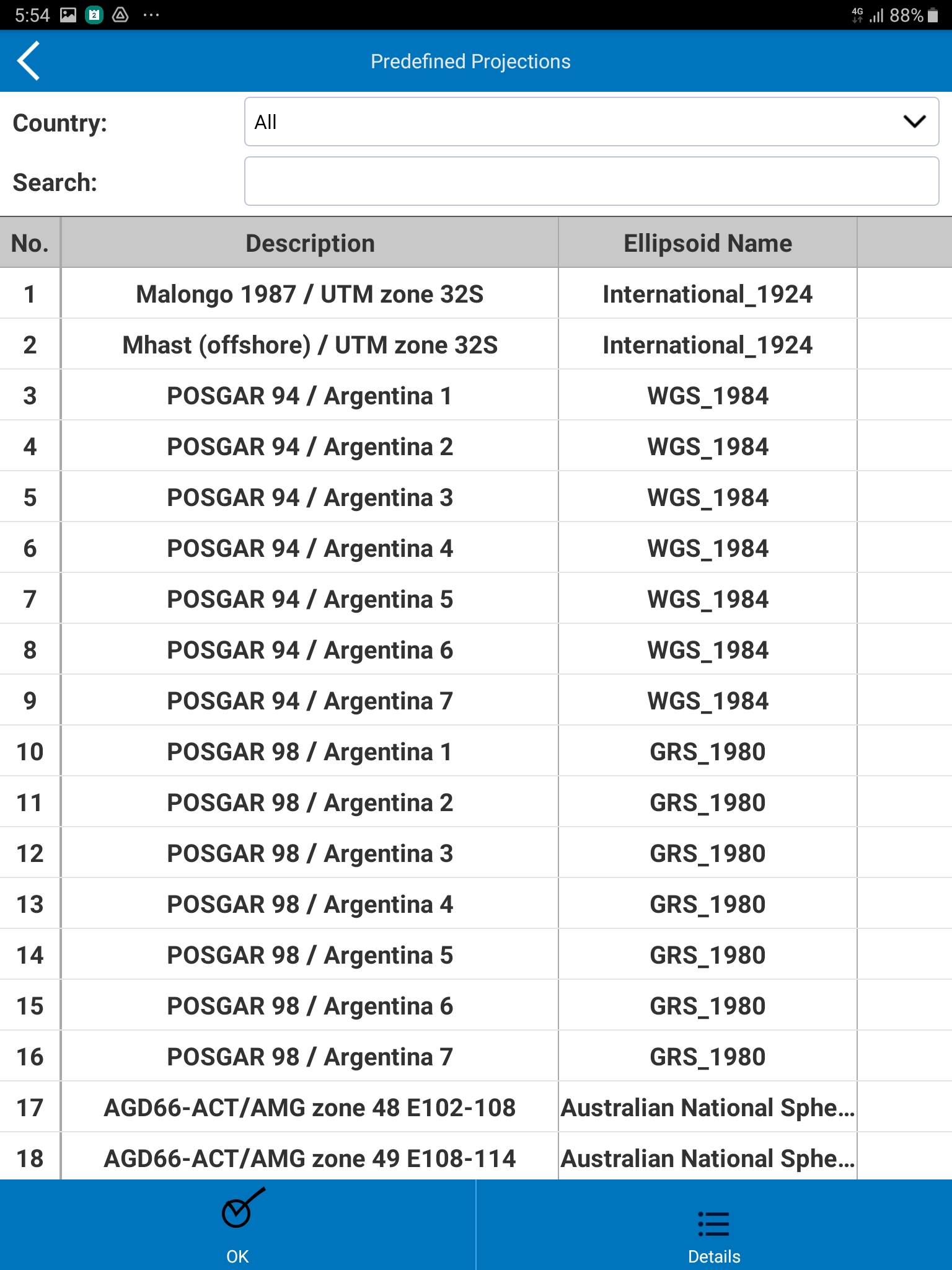

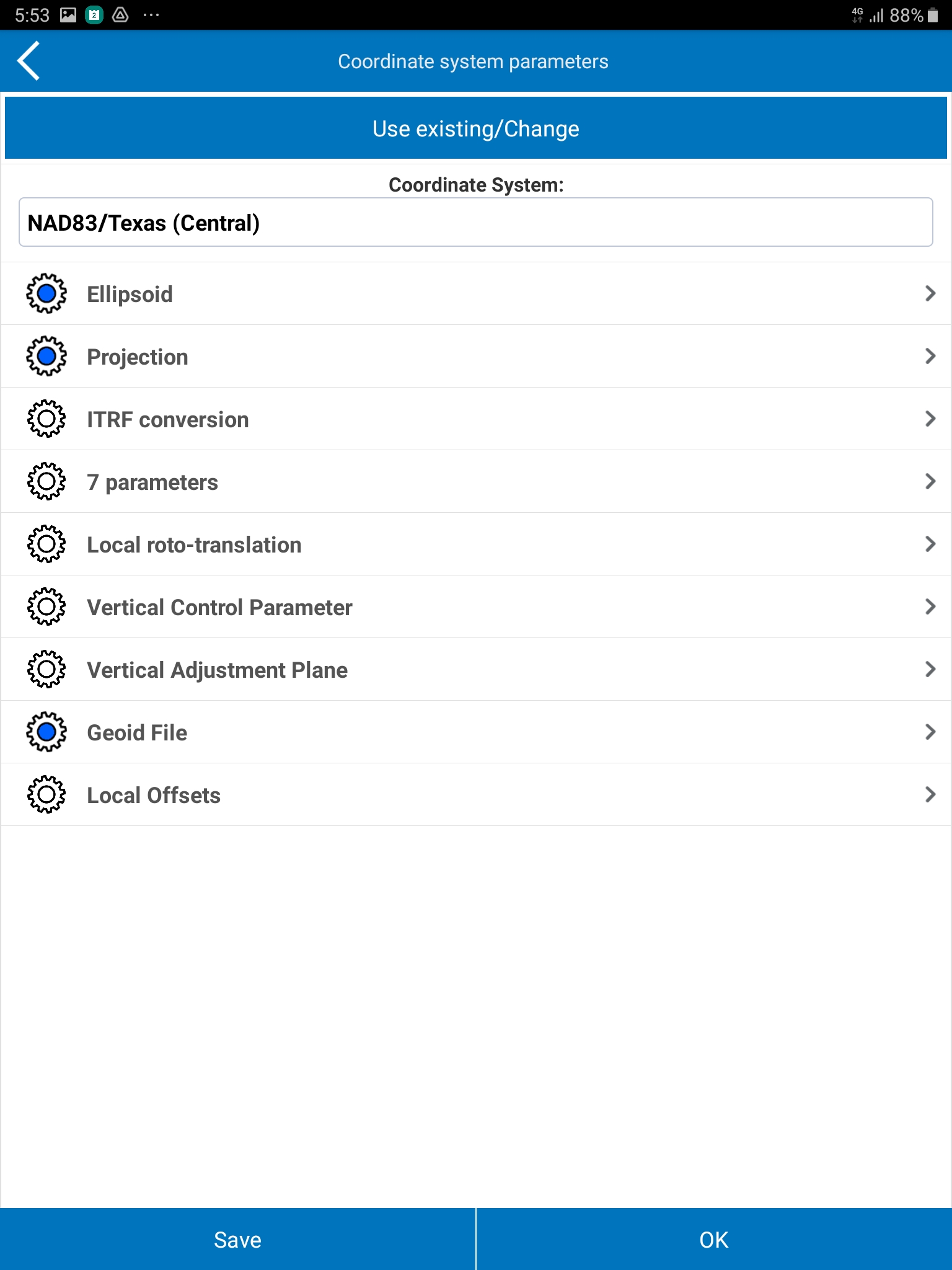

Cube-A will prompt you to select a coordinate reference system. In most cases your desired coordinate reference system will be predefined by Cube-A. To use a predefined projection, select Use existing/Change at the top of the menu, then select Predefined Projections.

Navigate to your desired projection. If you cannot find your desired projection you will have to upload the projection onto the device or configure the coordinate system manually by selecting an ellipsoid and configuring projection settings.

Once your coordinate reference system is set you can begin configruing your GNSS recievers.
