Status & Activity LED

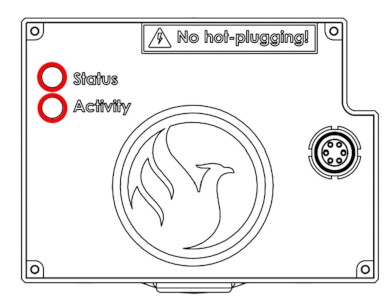

The status and activity LED show whether the camera is operational and also indicate trigger and capture events.
The status and activity LED show whether the camera is operational and also indicate trigger and capture events.
During boot-up, the camera will perform a self-check to guarantee proper functionality. During this check, the status and activity LED will show the following:
Status LED | Activity LED |
Constant RED | Flashing RED indicates an activation of the camera trigger |
For more details on the self-check, please refer to section Powering ON the Camera.
Based on the outcome of the self-check, the LED status will be the following:
Status LED | Activity LED |
Constant GREEN indicates a successful self-check | Flashing GREEN indicates the camera captured an image |
Flashing RED while constant GREEN indicates the camera received a trigger signal from rover | |
Flashing RED only indicates the self-check failed and camera is not operational (check section Troubleshooting) |
