Mounting
Important notes about mounting the camera.
Important notes about mounting the camera.
In case the A6K-Lite camera was purchased as a stand-alone or upgrade accessory (without Phoenix NavBox), you will be mounting the camera yourself.

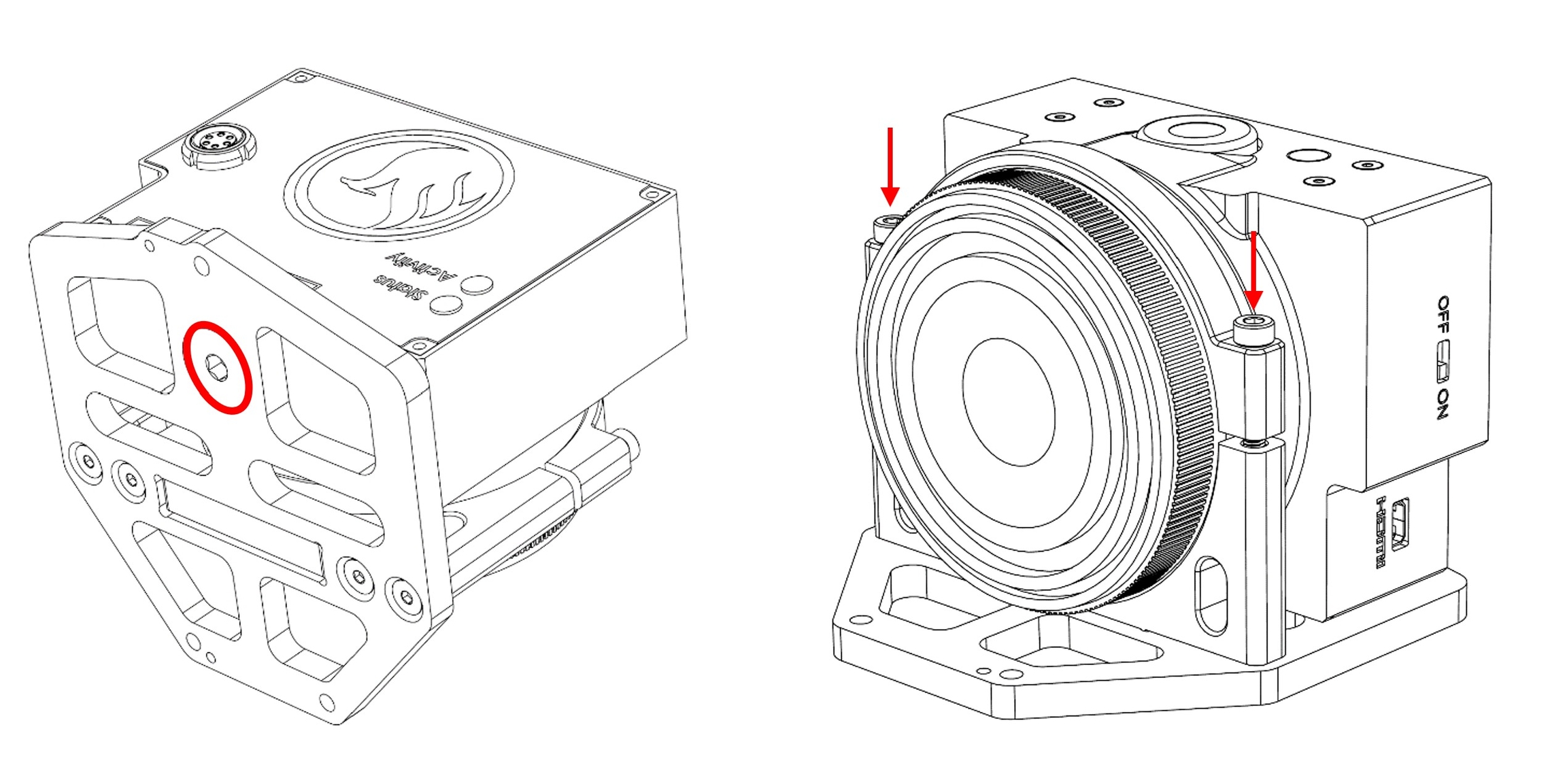

It must be noted that the ¼”-20 screw (shown on the left below) should be installed with Loctite threadlocker #243 and tightened only finger-tight without applying too much force as this might damage the camera housing. The entire camera will be safely secured via the lens bracket (shown on the right below) and the 1/4" thread is mainly used for alignment purposes only.
Please note that each system needs a new boresight (calibration) flight whenever the camera is remounted. Refer to Boresighting Flight Strategy for more info on boresight flights.
