# Example 2: Dynamic Datum

## EXAMPLE 2: Dynamic Horizontal Datum with Geodetic Vertical Datum using RTX Refined Reference Station Coordinates (@ L1 Phase Center)

* Data Collected : 06/18/21
* Desired output for LAS/LAZ: **WGS84 UTM 14 North Meters**

[**Horizontal Datum**](https://docs.phoenixlidar.com/common-terms-and-definitions#horizontal-datum)**:  WGS84 UTM 14 North Meters**

* The World Geodetic System 1984 (WGS84) has been revised six times since its original realization in 1987.
* The most recent version is WGS84 (G2139) implemented on 3 January 2021 and aligned to the International GNSS Service (IGS) realization of the International Terrestrial Reference Frame 2014 (ITRF2014), known as IGb14.
* WGS84 (G2139) will replace (G1762), however, it is not currently available. Until it is, G1762 should be selected.
* The WGS84 reference frame is realized globally through the coordinates of 17 DoD monitoring stations distributed across the world.
* WGS84 is a dynamic reference frame.
* At the beginning of each year, the National Geospatial-Intelligence Agency (NGA) update station coordinates of the 17 sites.
* The coordinates are adjusted to an epoch at the half year mark to account for plate tectonic motion.
* This means that WGS84 coordinates derived by users from GPS measurements will appear to move over time.
* WGS84 = [**Datum**](https://docs.phoenixlidar.com/common-terms-and-definitions#datum)
* (G1762) = [**Realization**](https://docs.phoenixlidar.com/common-terms-and-definitions#realization)
* 2021.46 = Date of acquisition = [**Epoch**](https://docs.phoenixlidar.com/common-terms-and-definitions#epoch)
* UTM 14 North = [**Map Projection**](https://docs.phoenixlidar.com/common-terms-and-definitions#map-projections)
* Meters = **Units**

[**Vertical Datum**](https://docs.phoenixlidar.com/common-terms-and-definitions#vertical-datum)**: WGS84 (G1762)**

* WGS84 is a [geodetic](https://docs.phoenixlidar.com/common-terms-and-definitions#ellipsoid) vertical datum and does not require the user to select a geoid model.

## Navlab and LiDARMill Workflow

* LiDARMill does not require the user input of the epoch when RTX refined reference station coordinates are utilized, because it extracts the epoch from the RTX report.

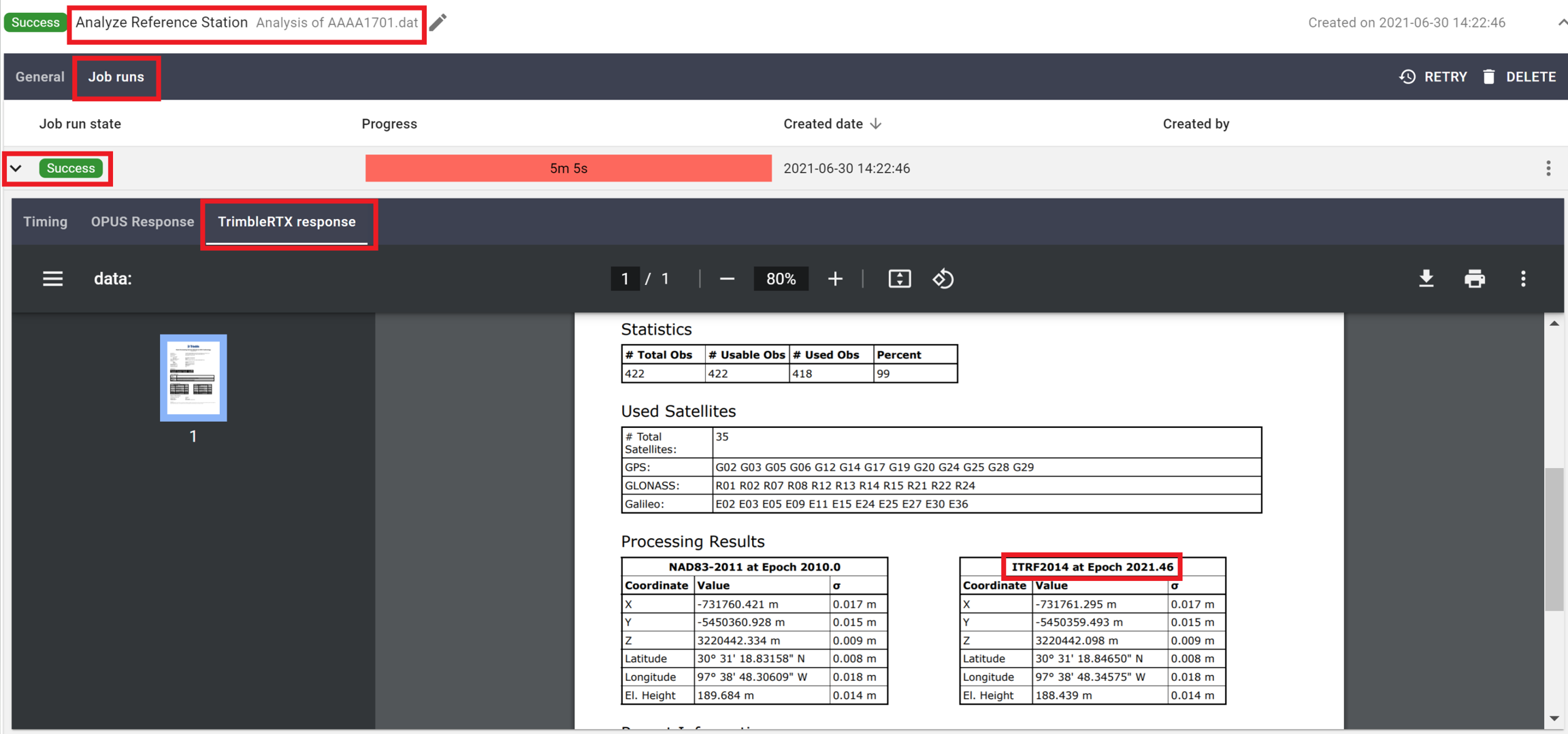

![Accessing RTX report in LiDARMill](/files/-MdU7Zeu2qg_u1ej6YhL)

### Project CRS Georeferencing

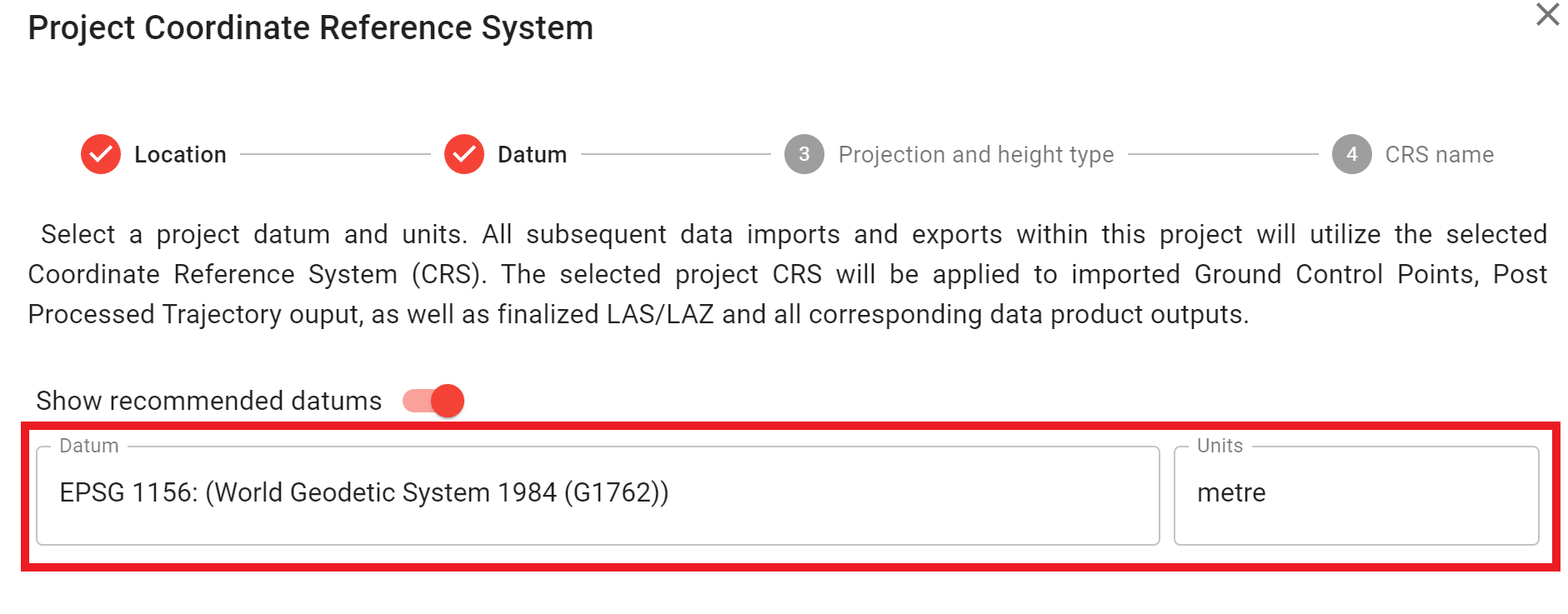

During [project creation](https://docs.phoenixlidar.com/lidarmill-cloud/workflow/project/project-reference-setup), select "WGS84 (G1762)" as the project datum and select "Metre" for the project units.

![Project Datum and Units](/files/-MdTktc1CziRogAHda09)

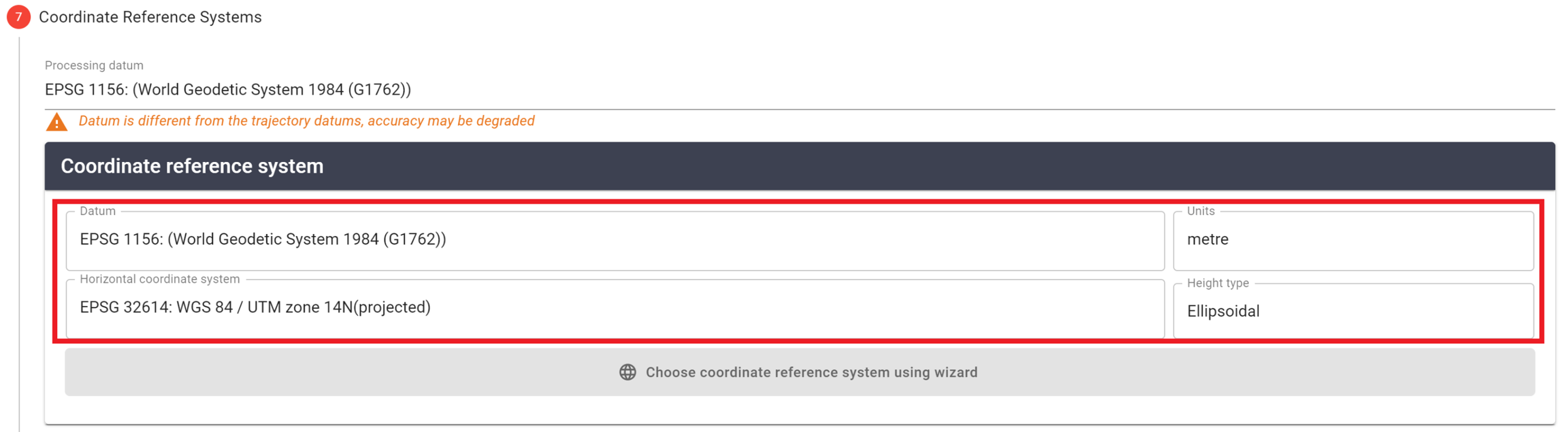

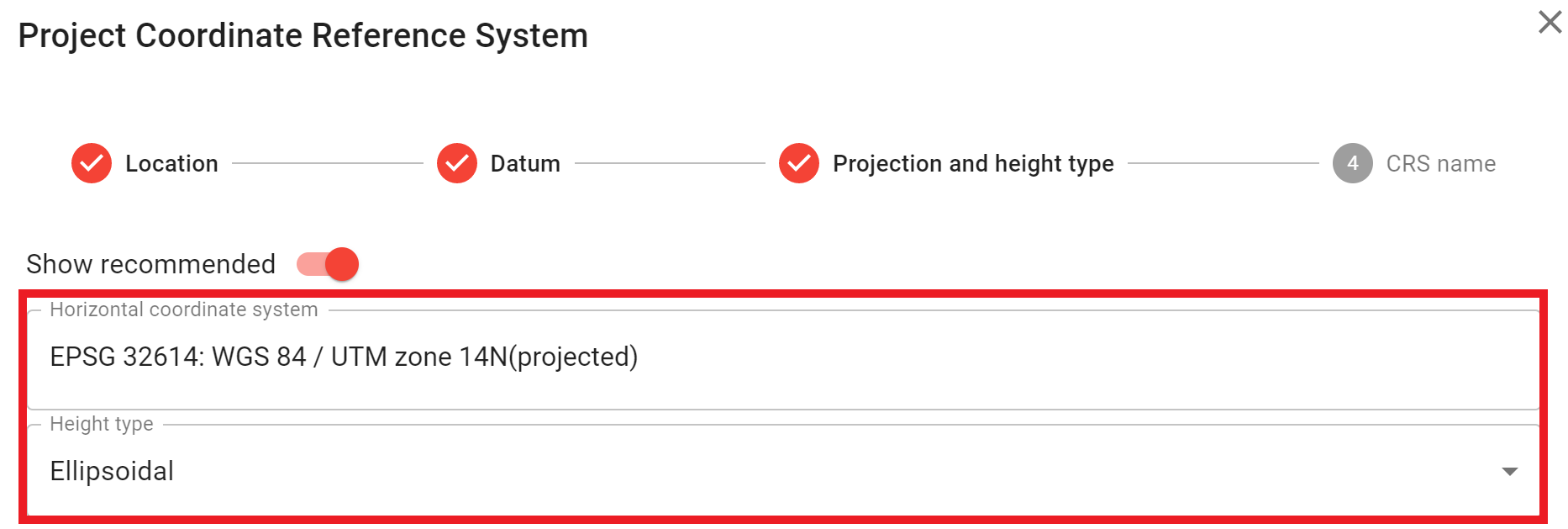

Next, select the Horizontal coordinate system "WGS84/UTM zone 14N" (Datum and Map Projection) and "Ellipsoidal" as the vertical geodetic coordinate system (WGS84(G1762) will be automatically selected for vertical CRS)

![Horizontal and Vertical CRS](/files/-MdTl6js1I6NwA0Sm1oi)

### GCP Georeferencing

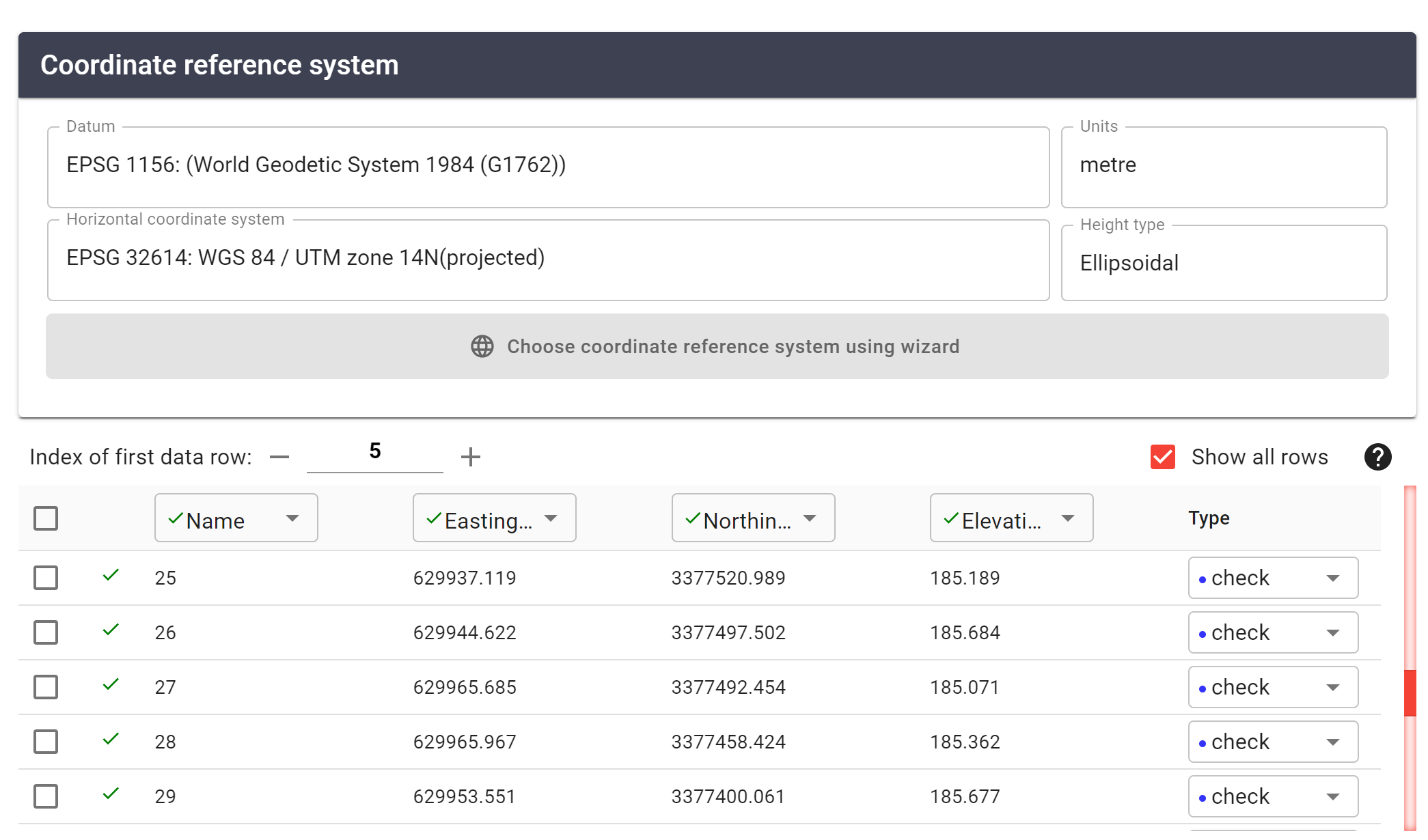

The project CRS should match the [GCP CRS](https://docs.phoenixlidar.com/lidarmill-cloud/workflow/project/project-reference-setup#ground-control). You can verify the GCP CRS by clicking on the "GCP" tab within LiDARMill, and then clicking the button to the right of the GCP artifact, then click "Edit artifact"

![GCPs CRS should match project CRS](/files/-MdTvfKXJs05Dw_q8pGa)

### Reference Station Georeferencing

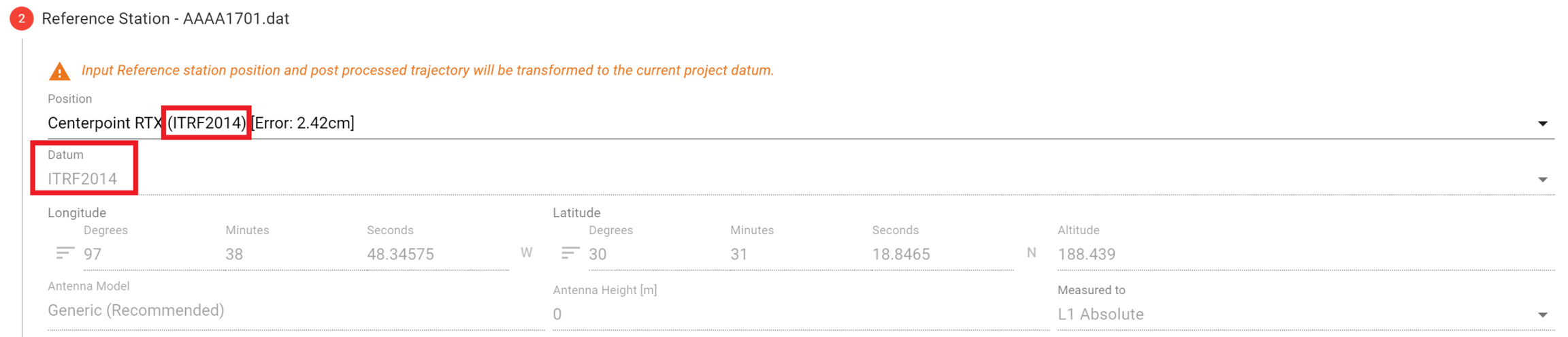

In [step two](https://docs.phoenixlidar.com/lidarmill-cloud/workflow/processing-tools/navlab-pipeline#configure-navigation-rover-settings) of a Navlab Pipeline, select the ITRF2014 refined trajectory. Navlab will automatically specify the epoch (derived from the RTX report).

![Refined Reference Station Position datum](/files/-MdTqKU5hEIKO43jcUwn)

### Output Trajectory Georeferencing

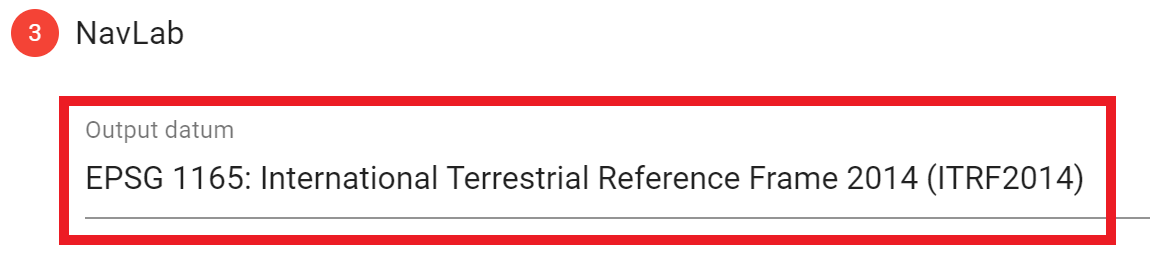

In [step three](https://docs.phoenixlidar.com/lidarmill-cloud/workflow/processing-tools/navlab-pipeline#configure-verify-output-trajectory-datum) of a Navlab Pipeline, select the output datum as ITRF 2014

![Select Trajectory Output Datum](/files/-MdTqjhdOPOGzAayNHgT)

### Export Pointcloud Georeferencing

LiDARMill may prompt the user to select the output coordinate system within the Spatial Fuser Pipeline. If it does not prompt the user, the Project CRS will be used.

![Set Output CRS](/files/-MdTr8_NHSwqW75p8lAX)

## Inertial Explorer and Spatial Explorer Workflow

### Project CRS Georeferencing

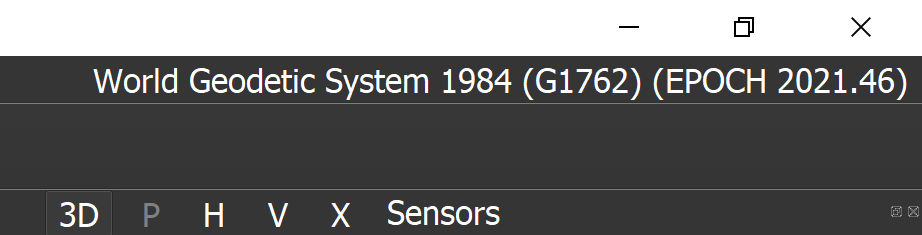

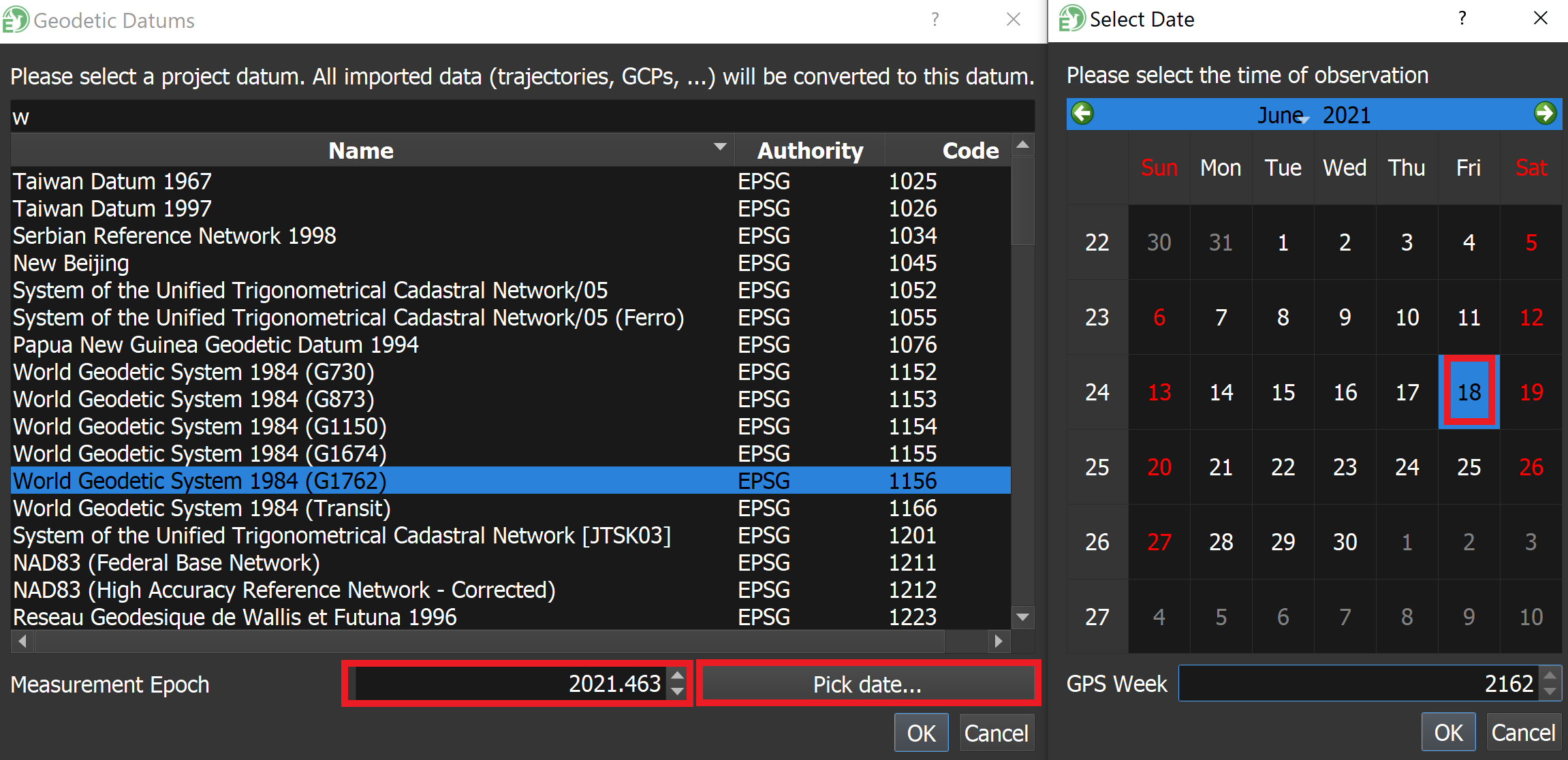

[Open the Project](https://docs.phoenixlidar.com/lidarmill-desktop/post-processing/workflow-kk/project-setup) PLP in SpatialExplorer, and click on the datum at the upper right to configure the datum as WGS84(G1762) and click "Pick date..." to select the date of the LiDAR acquisition.

![Set Project Datum and Epoch](/files/-MdYrZZuJl5s9HasxhxS)

![](/files/-MdYrvRVjoVVmRg0eg4V)

### GCP Georeferencing

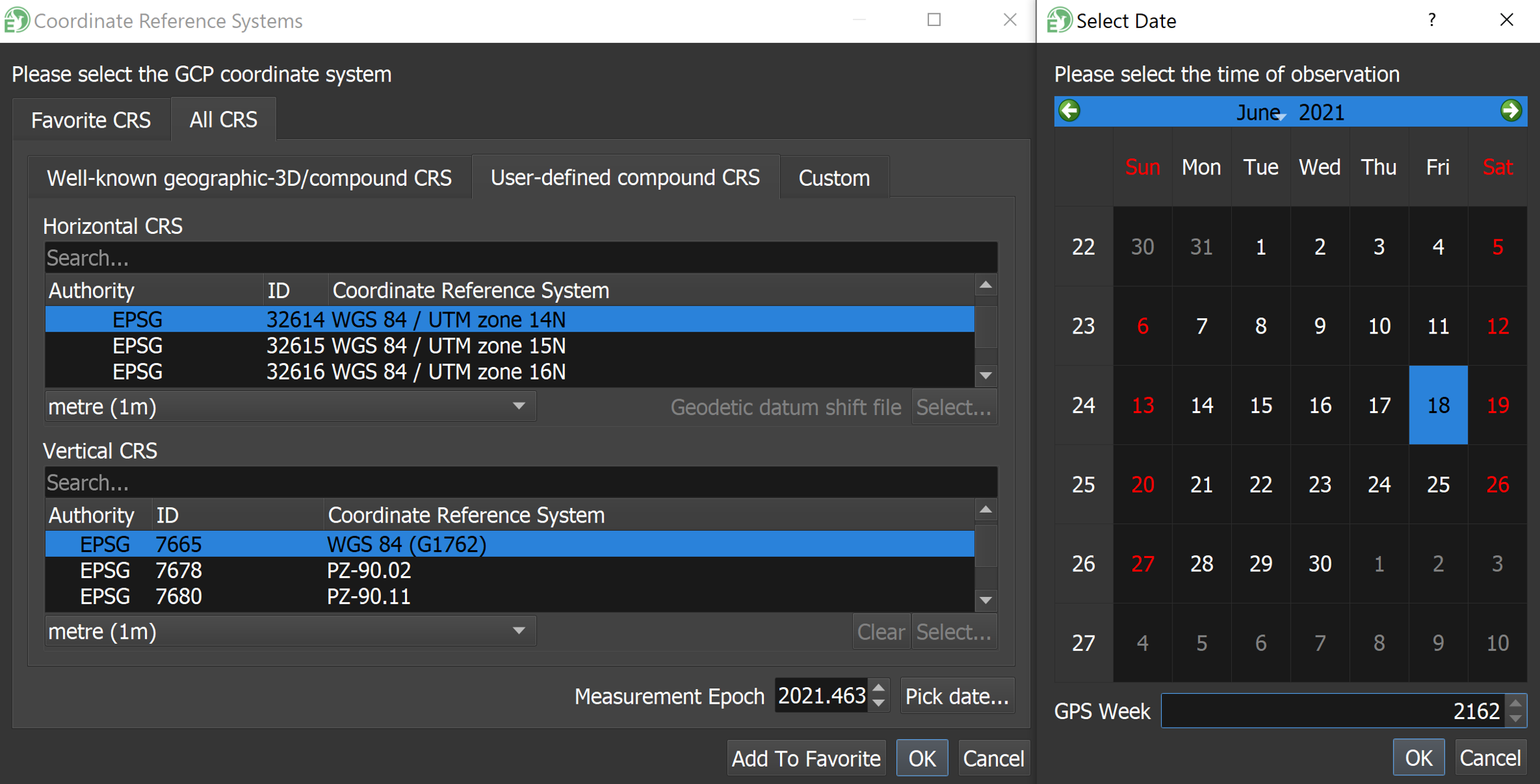

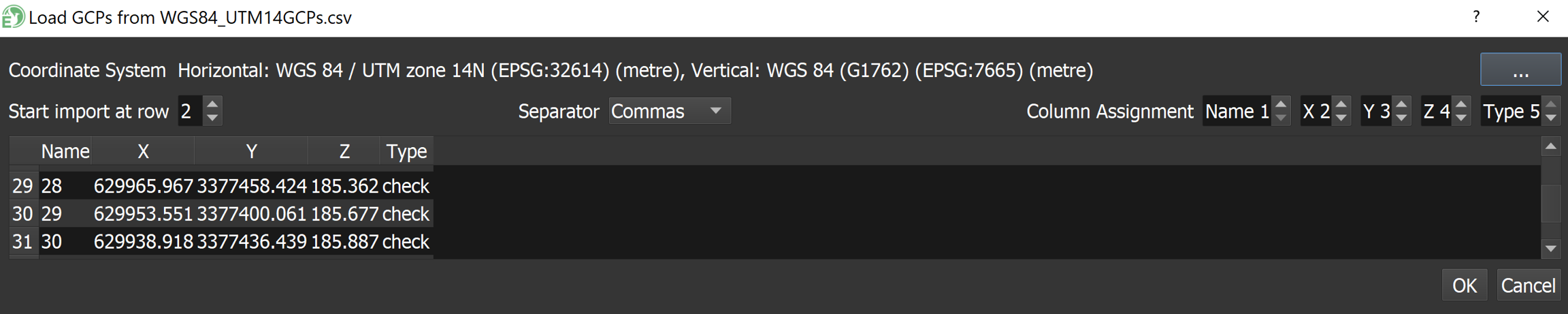

When [importing GCPs](https://docs.phoenixlidar.com/lidarmill-desktop/post-processing/workflow-kk/uploading-files/ground-control-points-gcps) into Spatial Explorer, Select the Horizontal CRS as "WGS 84 / UTM zone 14N" with units set to "metre" and select the Vertical CRS as "WGS84(G1762)" with units set to "metre".

![GCP CRS input](/files/-MdYsy0hKnxzalXY4ilP)

![Verify GCP CRS](/files/-MdYt3csK4hd1Avz3ou2)

### Reference Station Georeferencing

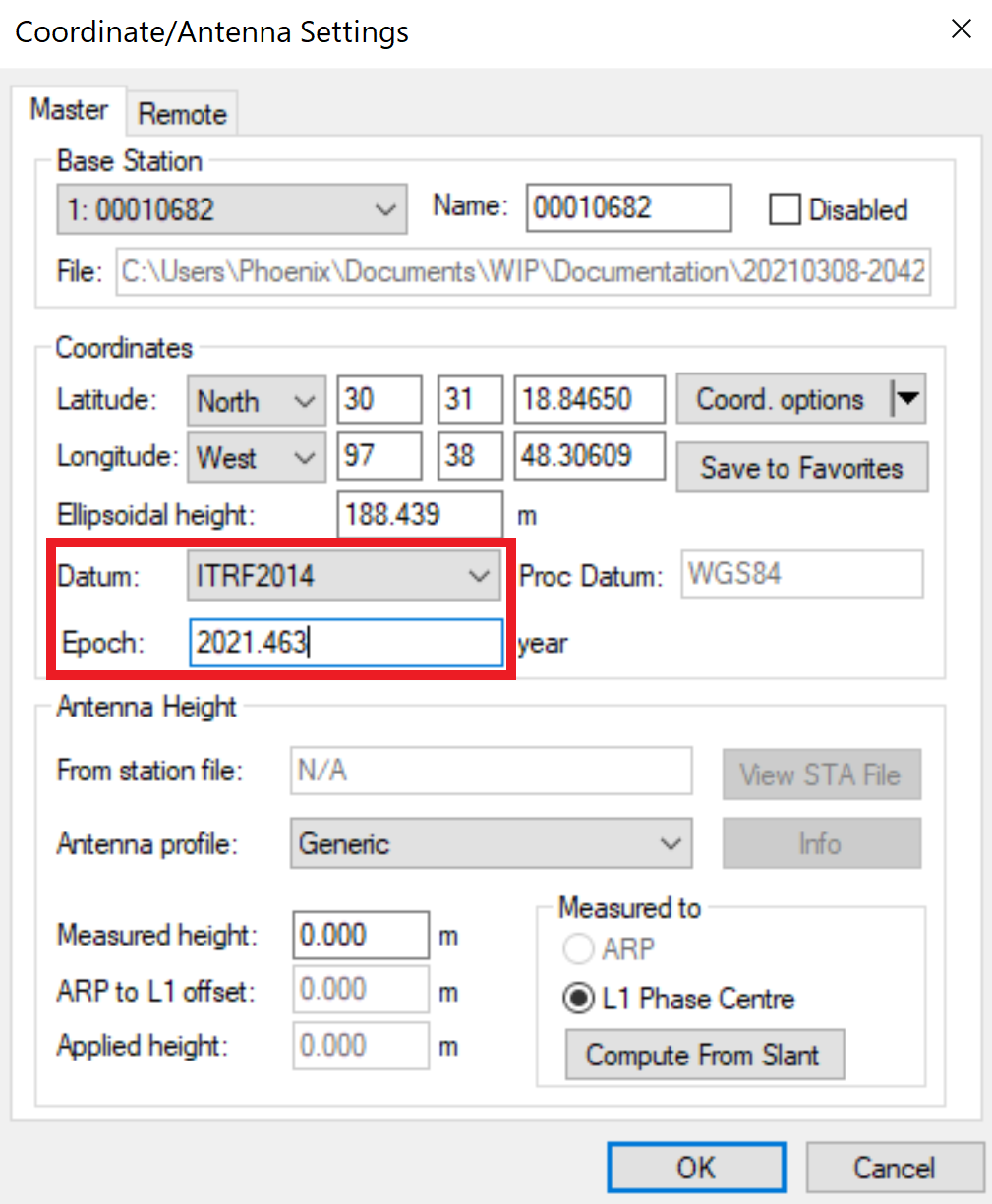

During trajectory processing in Inertial explorer, [configure the reference station datum](https://youtu.be/kN5U3eHvEsQ?t=91) as "ITRF2014" and the epoch as the project datum epoch when the LiDAR data was collected - "2021.463" in this example.

![Input RTX Refined Reference Station Position in ITRF2014 datum and input Epoch 2021.463](/files/-MdYtxalSfKNtJ61aflU)

### Output Trajectory Georeferencing

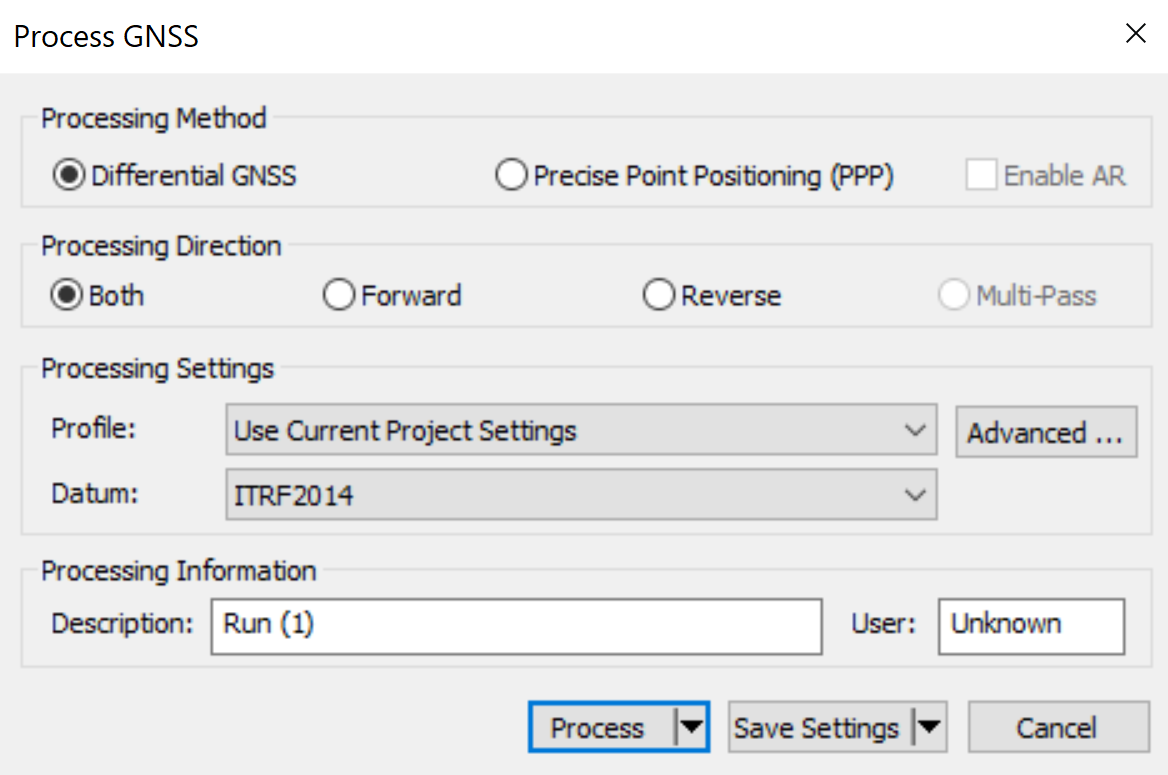

In Inertial Explorer, select the datum "ITRF2014" during the [GNSS trajectory processing](https://youtu.be/kN5U3eHvEsQ?t=211) step

![GNSS Trajectory Datum](/files/-MdYuAmrUCcvZIx1bMzb)

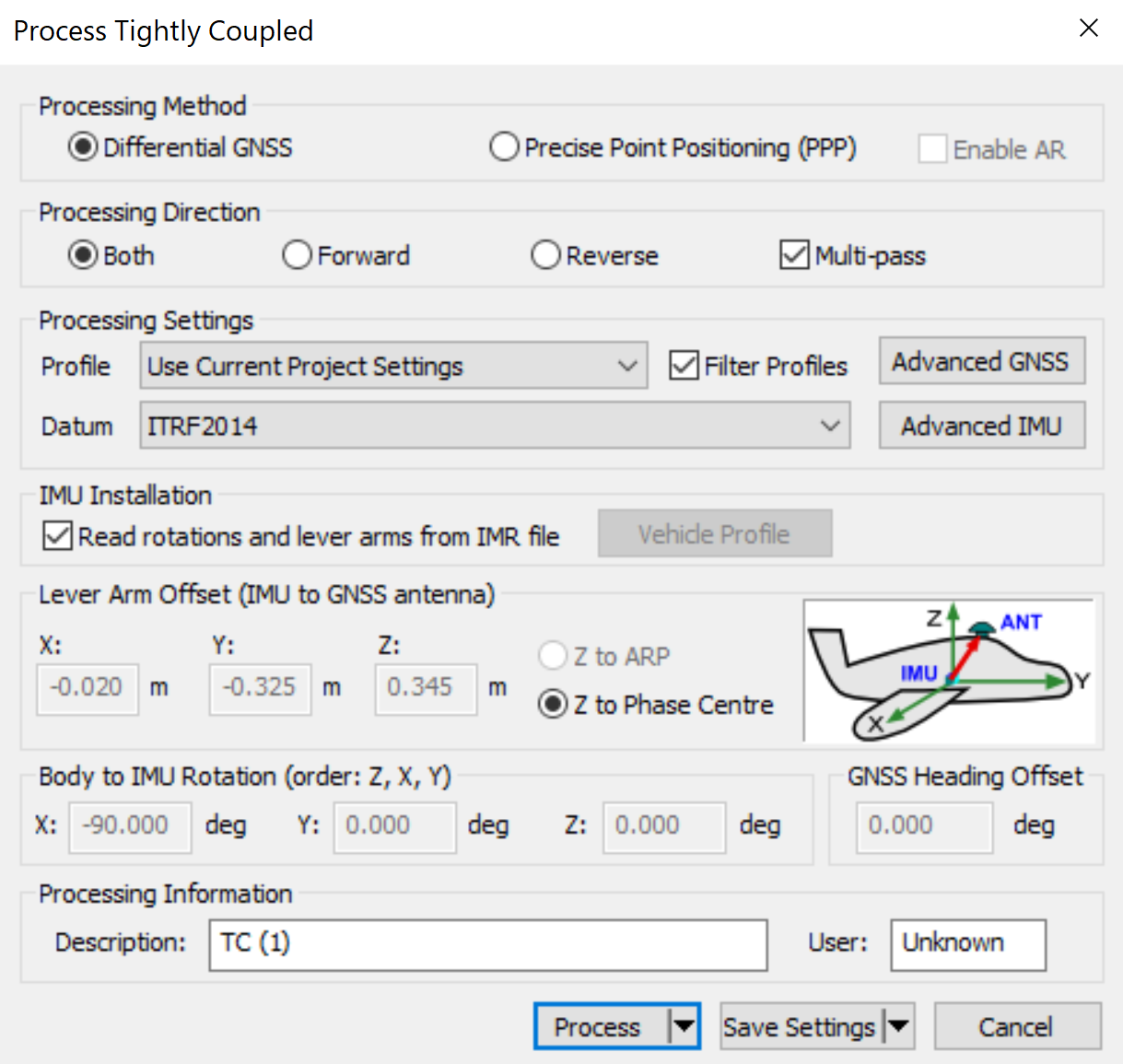

In Inertial Explorer, select the datum "ITRF2014" during the tightly coupled trajectory processing step

![Tightly Coupled Trajectory Datum](/files/-MdYuO1LOmfTgaMXugj6)

### Load Post Processed Trajectory into SpatialExplorer

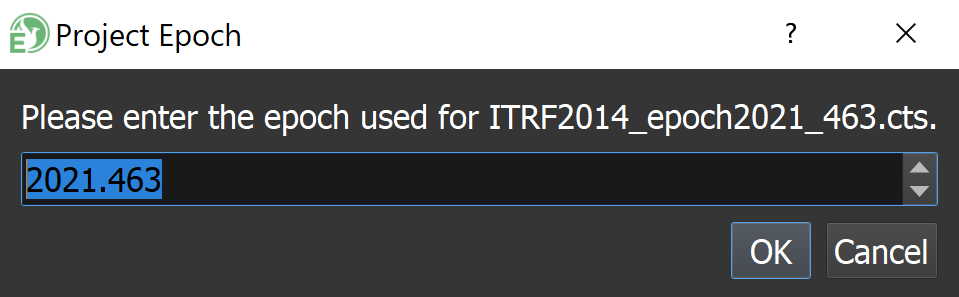

When [importing a post processed trajectory](https://docs.phoenixlidar.com/lidarmill-desktop/post-processing/workflow-kk/uploading-files/trajectory) into SpatialExplorer, the trajectory epoch will be the same as the project epoch - "2021.463" in this example.

![Trajectory Epoch](/files/-MdYvSEQcKUCRoTE3Xi0)

### Export Pointcloud Georeferencing

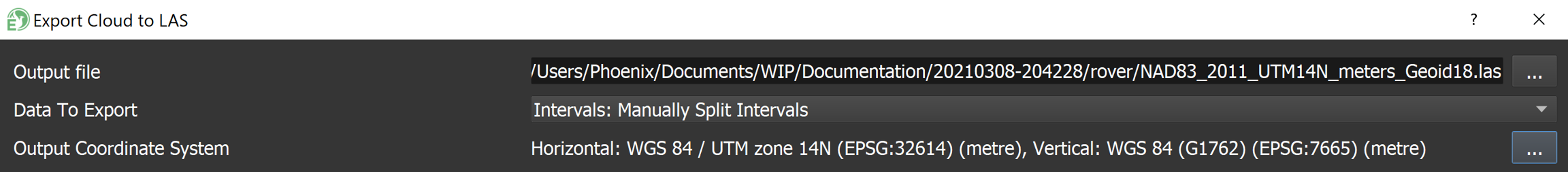

When[ exporting the final pointcloud](https://docs.phoenixlidar.com/lidarmill-desktop/post-processing/workflow-kk/export-cloud/las-laz-pointcloud#output-coordinate-system),  select the Horizontal CRS as "WGS84 / UTM zone 14N" with units set to "metre" and select the Vertical CRS as "WGS84(G1762)" with units set to "metre". Click "Pick date..." to specify the epoch as the date of LiDAR acquisition, and matching the project epoch.

![Exported LAS/LAZ CRS](/files/-MdYqhXeNkB2BGey4ksn)

![Verify Output Coordinate System Before Exporting Pointcloud](/files/-MdYqvuHLNQ-16nxjnFW)


---
