Settings Wheel
The settings wheel is only required when the default camera settings like shutter speed and aperture need to be changed.
The settings wheel is only required when the default camera settings like shutter speed and aperture need to be changed.
The settings wheel on the top side of the camera will only be needed when the camera default settings need to be adjusted while a monitor is connected to the HDMI port. Please refer to the section Changing Camera Settings of this manual, where you will also find step-by-step instructions on how to adjust the shutter speed and aperture.
Do not operate the settings wheel when no monitor is connected to the HDMI port. Otherwise, camera settings will be changed and you cannot confirm the changes without a monitor. If the wheel gets operated by accident, simply power-cycling the entire system will revert the camera back to the default settings.

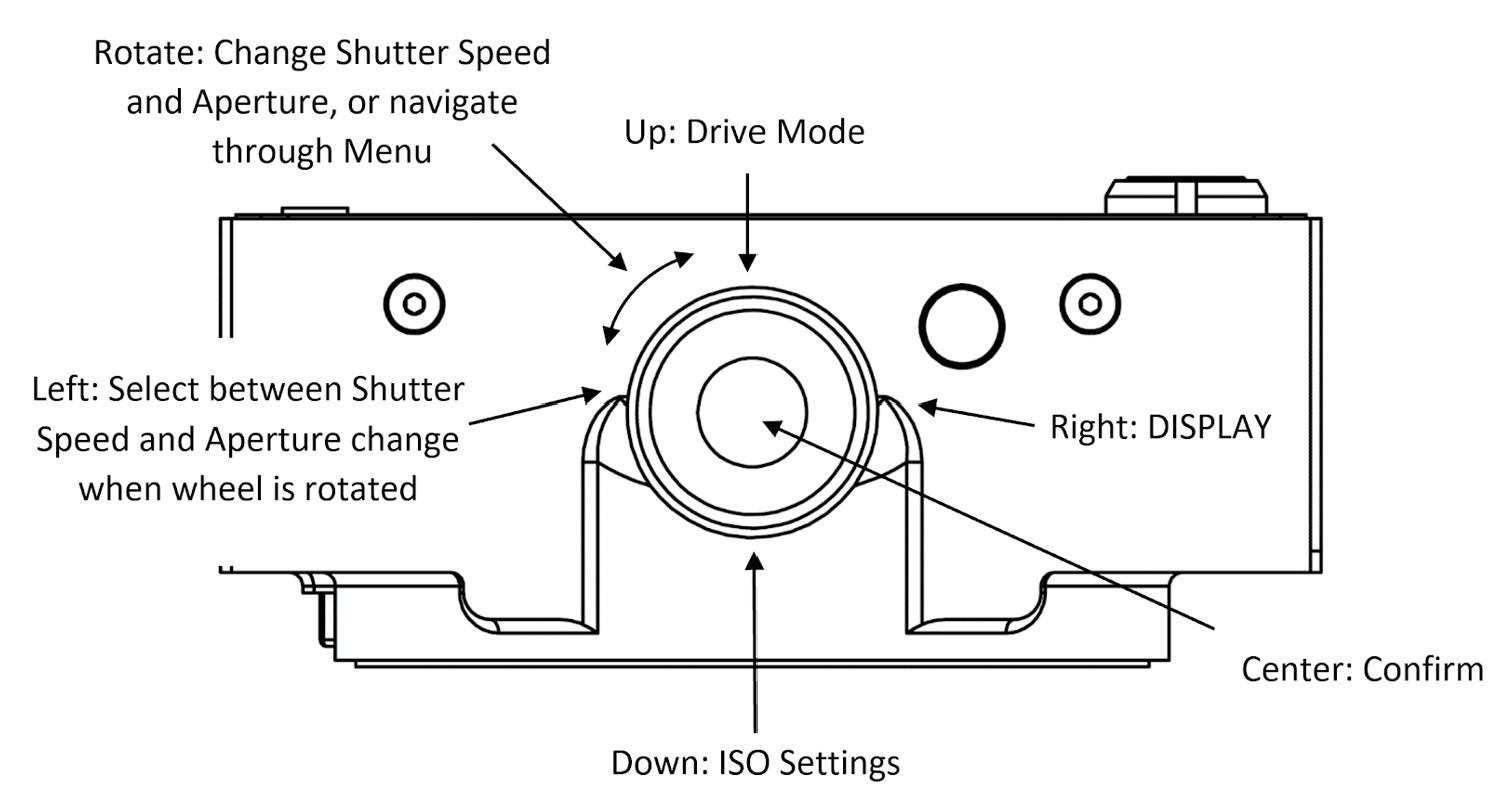

The wheel can be clicked on all four corners and can also be rotated. Use the following graphic as a reference for the various functions:

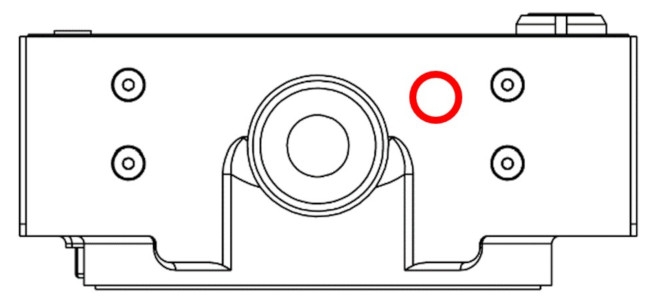

This button will access the Sony camera menu where further settings can be adjusted by navigating via the settings wheel. We do not recommend changing additional settings other than shutter speed, aperture, and ISO.
